Description

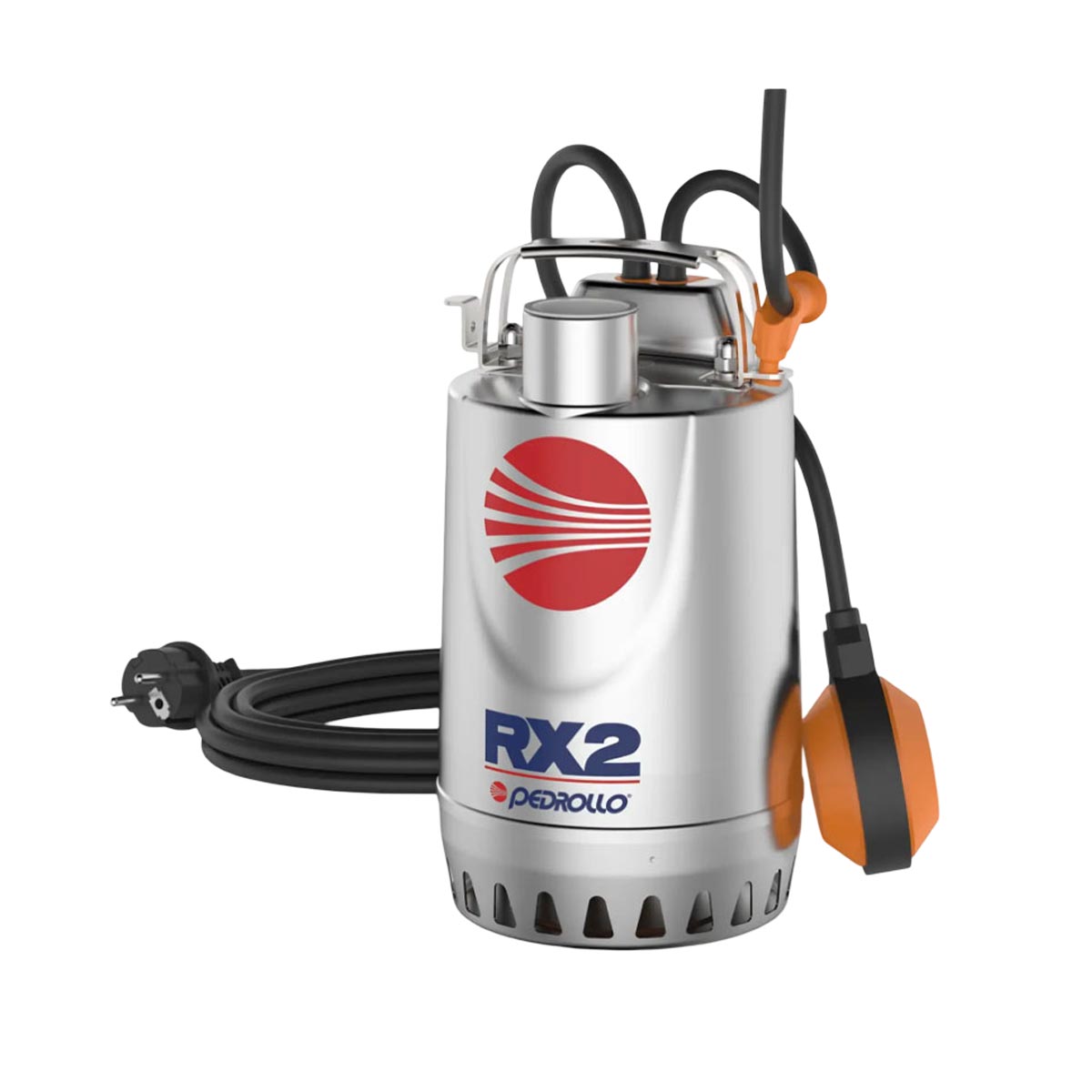

The Pedrollo RX Series are stainless steel submersible pumps built for draining clear water free of abrasive particles. Their fully cooled motor and double shaft seal ensure long-term reliability. Suited for rapid-response emergency drainage, they handle small floods, household wastewater from appliances, and sump emptying with high-efficiency performance.
Features
- Full stainless steel AISI 304 construction throughout wetted components
- Double shaft seal with oil chamber for enhanced motor protection
- Complete motor cooling for safe continuous operation
- Float switch included on single-phase versions (vertical float switch available as “”RX-GM”” option)
- IP 68 ingress protection rating
- 2-pole motor; insulation class F
- Power cable: 5 m standard for RX 1–3; 10 m standard for RX 4–5
- Threaded discharge port in compliance with ISO 228/1
- Passes suspended solids up to Ø 10 mm
Performance
- Flow rate: up to 320 l/min (19.2 m³/h)
- Head: up to 20.5 m
- Liquid temperature: up to +50 °C (+90 °C intermittent service, max 3 minutes)
- Maximum immersion depth: 10 m (with appropriately sized power cable)
- Draining capability: 14 mm above ground level (RX 1–2–3); 30 mm (RX 4–5)
- Solids passage: up to Ø 10 mm
Applications
- Emergency drainage of flooded rooms, basements, and garages
- Household wastewater disposal from dishwashers and washing machines
- Sump and drainage trap emptying
- Permanent drainage installations in civil and public facilities
