Description

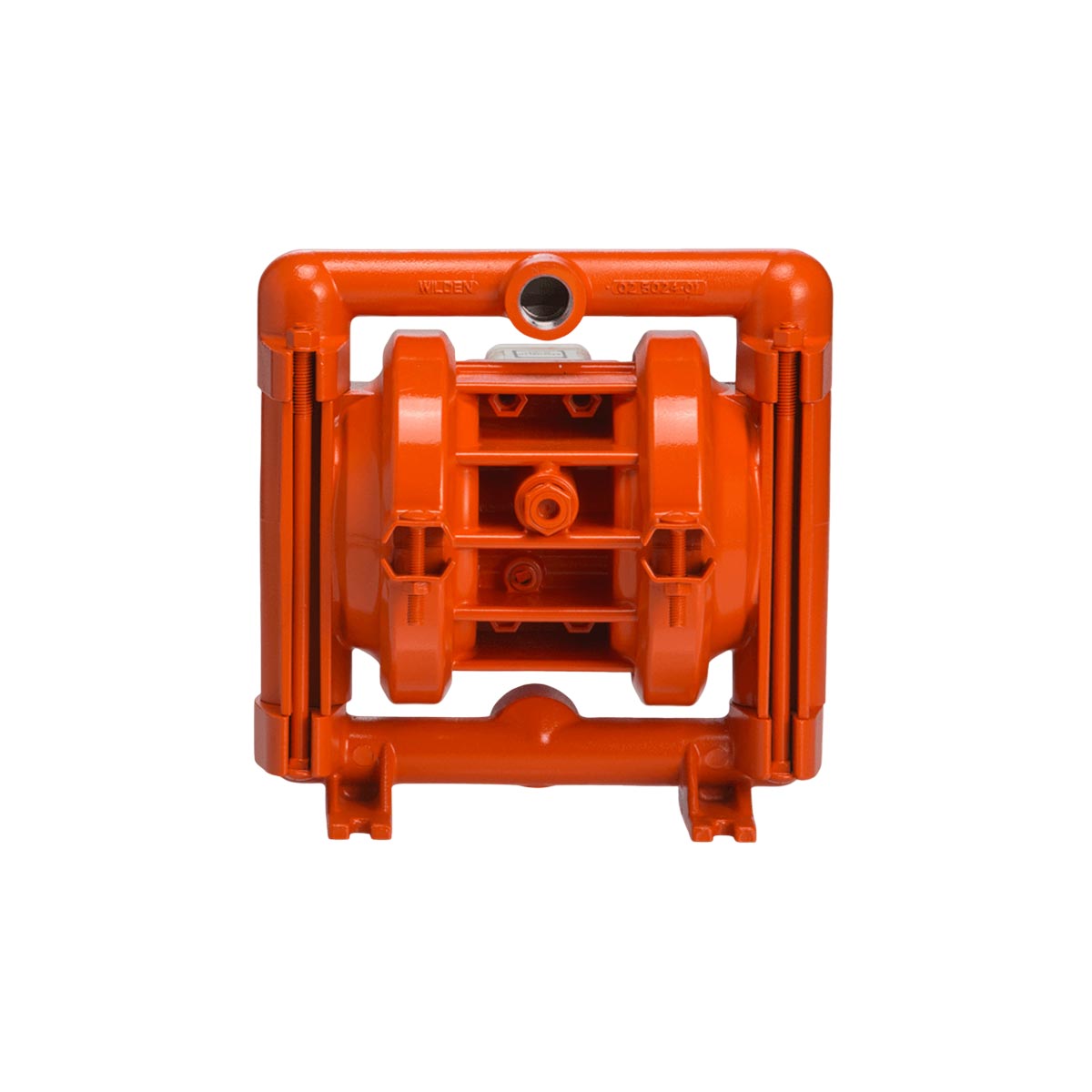

The Wilden® P2 is a 25 mm (1″”) Pro-Flo® Series clamped metal AODD pump featuring Jim Wilden’s original design. This simple, rugged construction is proven across general industrial applications. Clamped connections allow full disassembly with a single tool, minimising downtime. Hundreds of thousands of units globally demonstrate decades of reliable performance.
Features
- Clamped construction for fast, single-tool maintenance and quick serviceability
- NPT and BSPT threaded inlet and discharge liquid connections for quick disconnect/connect
- Four diaphragm options: Rubber, TPE, Full-Stroke PTFE, Reduced-Stroke PTFE
- Lube-free, self-priming operation; no mechanical seals
- Run-dry capable without damage
- Solids passage up to 3.2 mm (1/8″”)
- High suction lift capability across all diaphragm options — up to 9.0 m (29.5′) wet
- Low cost with simple installation
- Wetted housings available in aluminium and stainless steel
Performance
- Rubber: Max flow 172 lpm (45.5 gpm); suction lift 5.2 m (17.0′) dry / 9.0 m (29.5′) wet; displacement 0.3 L (0.08 gal) per stroke
- TPE: Max flow 171 lpm (45.2 gpm); suction lift 7.6 m (25.0′) dry / 9.0 m (29.5′) wet; displacement 0.3 L (0.08 gal) per stroke
- Full-Stroke PTFE: Max flow 167 lpm (44.1 gpm); suction lift 4.7 m (15.3′) dry / 9.0 m (29.5′) wet; displacement 0.3 L (0.08 gal) per stroke
- Reduced-Stroke PTFE: Max flow 155 lpm (41 gpm); suction lift 2.8 m (9.1′) dry / 9.0 m (29.5′) wet; displacement 0.3 L (0.08 gal) per stroke
Applications
- General industrial fluid transfer
- Chemical processing and dosing
- Paints, coatings, inks, and dyes
- Mining and mineral processing
- Oil and gas and lube oil transfer
- Water and wastewater treatment
- Electroplating and surface treatment
- Sampling and metering applications
