Description

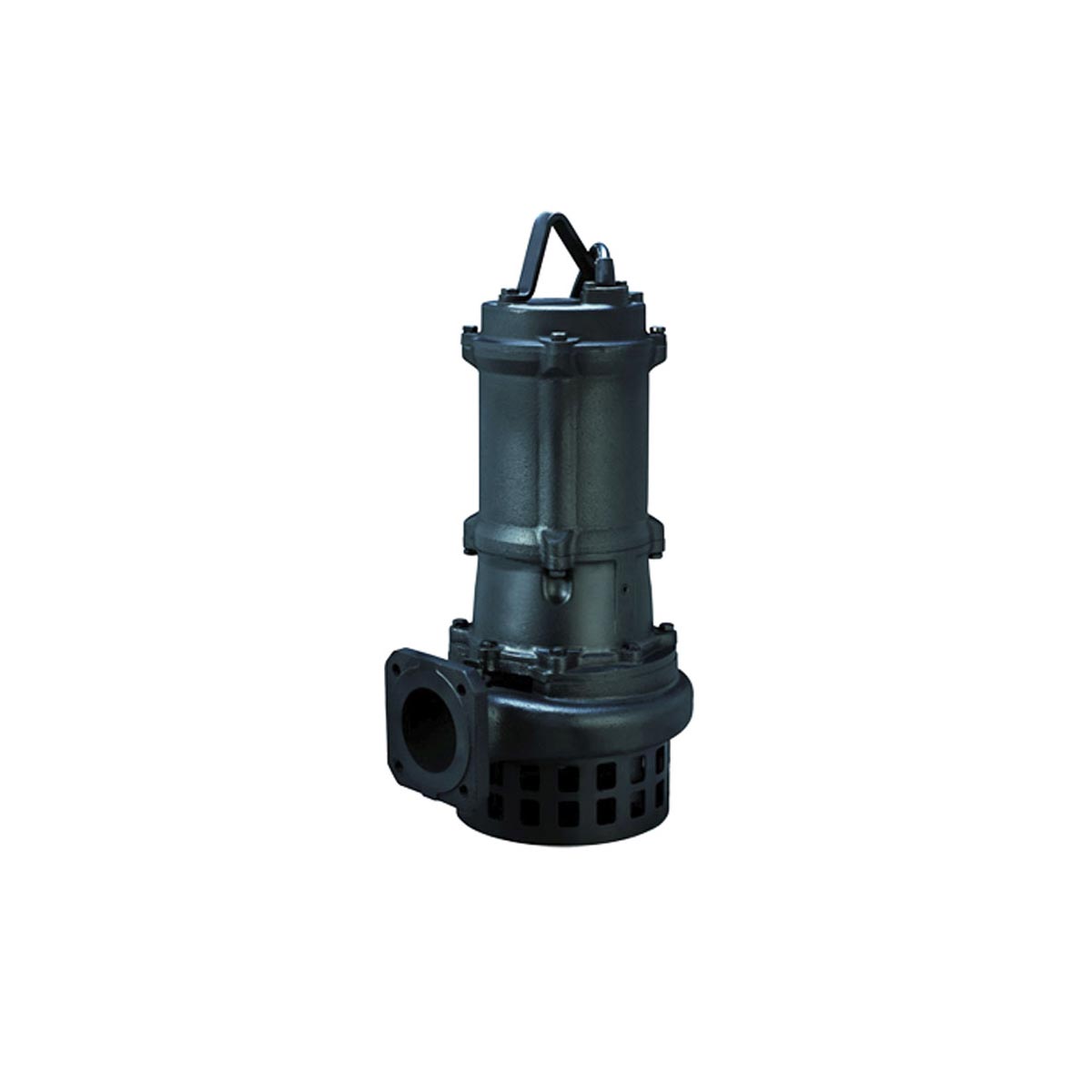

The Stanflo AL Series is a cast iron submersible wastewater and effluent pump built for industrial, commercial, and municipal drainage duties. Its compact, pressure-reducing design accommodates a wide range of high-head water handling needs, from underground floor sewage treatment to surface water extraction. A 100–150 µm high-solids epoxy coating on internal components extends service life in corrosive wastewater environments.
Features
- Entire cast iron construction for strength, durability, and wear resistance
- 100–150 µm high-solids epoxy coating for extended service life in wastewater
- Silicon carbide (SiC/SiC) double mechanical seals — abrasion-resistant and leak-proof
- Auto-cut thermal motor protector prevents damage from overheating
- Epoxy resin sealed cable entry base for waterproof integrity
- Built-in strainer optimised for low-solid water handling
- Triangular handle with guide rail system (GRS) compatibility for models 3.7 kW and above — simplifies installation and maintenance
- Compact, pressure-reducing design suitable for high-head applications
- 2-pole dry motor; insulation Class F / Class H
- IP 68 ingress protection rating
Applications
- Industrial and commercial wastewater and effluent handling (low-solid content)
- Waste water drainage across all industries
- Pumping surface water, drainage water, and flood water
- High-head sewage treatment for buildings with underground floors
- Extraction of water from rivers and lakes
- Rainwater and stormwater drainage management
- Landscaping water supply
