Description

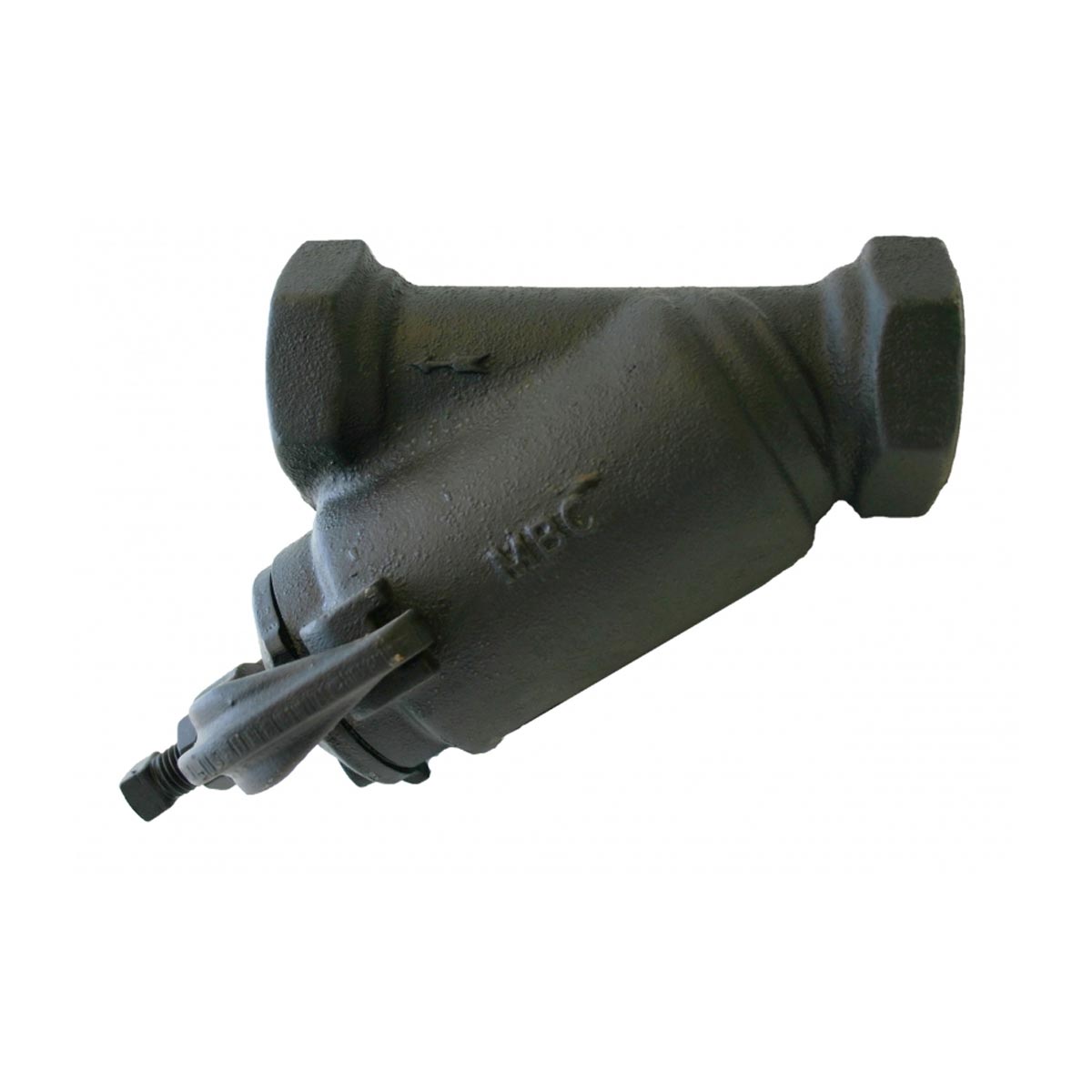

The Morrison Bros FIG 285 is a cast iron Y-type bottom clean-out line strainer for horizontal pipeline service, rated to 50 PSI operating pressure. Its NPT female threaded connections and bottom clean-out cap allow the 304 stainless steel strainer basket to be removed and serviced without line disruption. Available in six mesh sizes and standard or PTFE gasket options across 1-1/2″” to 4″” pipe sizes.
Features
- Y-type body for efficient inline straining in horizontal pipelines
- Bottom clean-out design for easy basket removal and servicing
- NPT female threaded connections
- 304 stainless steel strainer basket
- Cast iron body and cap; ductile iron yoke
- Gasket options: nitrile composite, Buna-N, or PTFE
- Mesh options: 6, 8, 10, 14, 20, 40, 60, 80, and 100 mesh
- Less-screen variants available for custom screen installations
Applications
- Horizontal pipeline installations requiring inline debris filtration
- Protection of downstream valves, meters, and process equipment
- Fuel, water, and general liquid handling systems
