Description

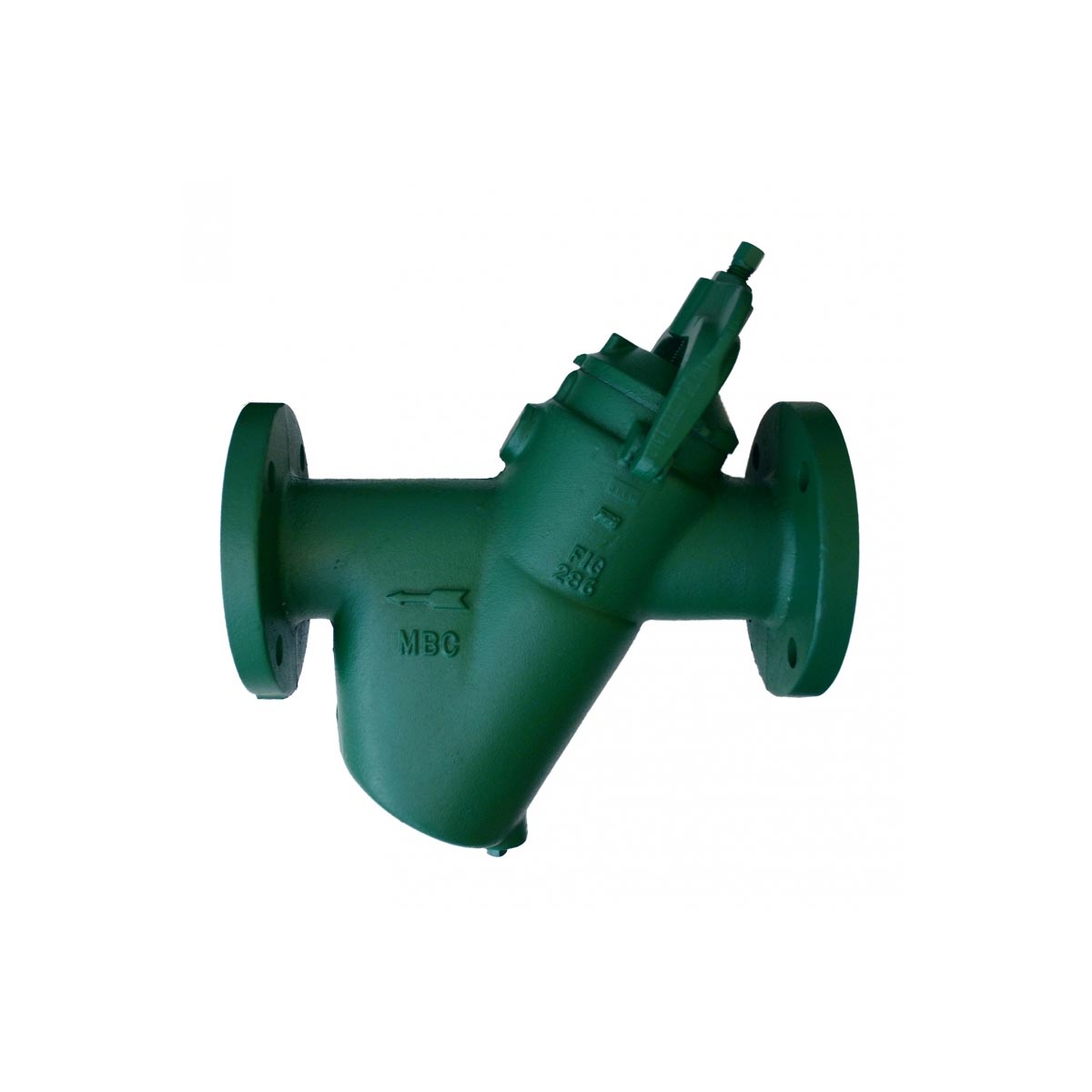

The Morrison Bros FIG 286FDI is a ductile iron Y-type top clean-out line strainer with 150# raised face flanged connections, rated to 50 PSI operating pressure. Designed for horizontal flanged pipeline service, its top-access cap provides convenient basket removal where underside clearance is restricted. Available in 3″” with a PTFE gasket and stainless steel screens in seven mesh sizes.
Features
- Y-type body for efficient inline straining in horizontal pipelines
- Top clean-out design for convenient basket access where underside clearance is limited
- Rated to 50 PSI operating pressure
- 150# raised face flanged connections
- Ductile iron body, cap, and yoke for robust construction
- 304 stainless steel strainer basket
- PTFE gasket as standard
- Screens available in 6, 10, 20, 40, 60, 80, or 100 mesh
Performance
- Rated to 50 PSI operating pressure
- Connection size: 3″” with 150# raised face flanged connections
Applications
- Horizontal flanged pipeline installations requiring inline debris filtration
- Installations with restricted underside access requiring top clean-out
- Protection of downstream pumps, meters, and process equipment
- Fuel, water, and general liquid handling systems
