Description

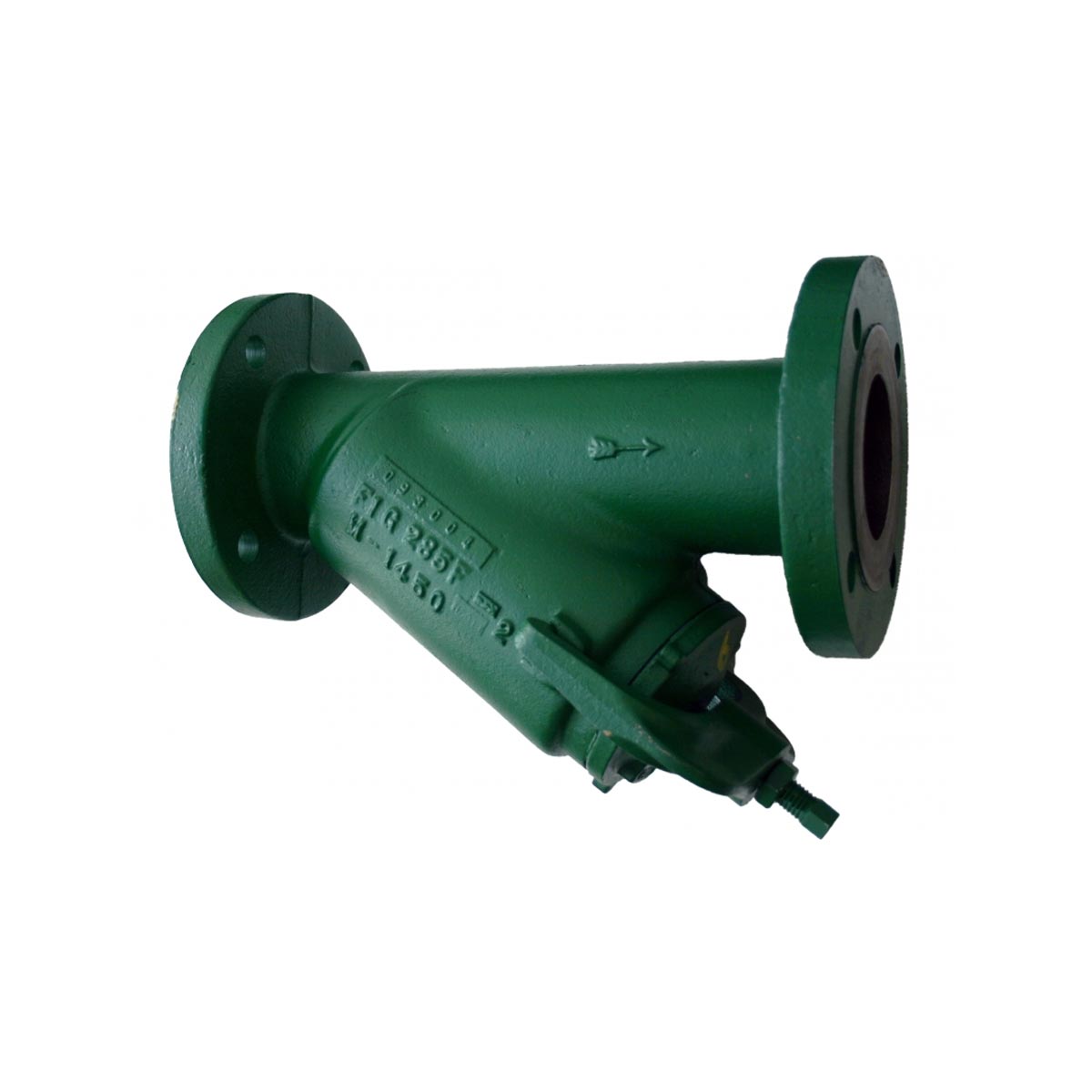

The Morrison Bros FIG 285FDI is a ductile iron Y-type bottom clean-out line strainer with 150# raised face flanged connections, rated to 50 PSI operating pressure. Designed for horizontal pipeline service, its bottom-access cap allows the 304 stainless steel strainer basket to be removed for cleaning or replacement without line disruption. Available in 3″” with stainless steel screens in seven mesh sizes.
Features
- Y-type body for efficient inline straining in horizontal pipelines
- Bottom clean-out design for easy basket access and servicing
- Rated to 50 PSI operating pressure
- 150# raised face flanged connections
- Ductile iron body, cap, and yoke for robust construction
- 304 stainless steel strainer basket
- PTFE gasket as standard
- Screens available in 6, 10, 20, 40, 60, 80, or 100 mesh
Applications
- Horizontal flanged pipeline installations requiring inline debris filtration
- Protection of downstream pumps, meters, and process equipment
- Fuel, water, and general liquid handling systems
