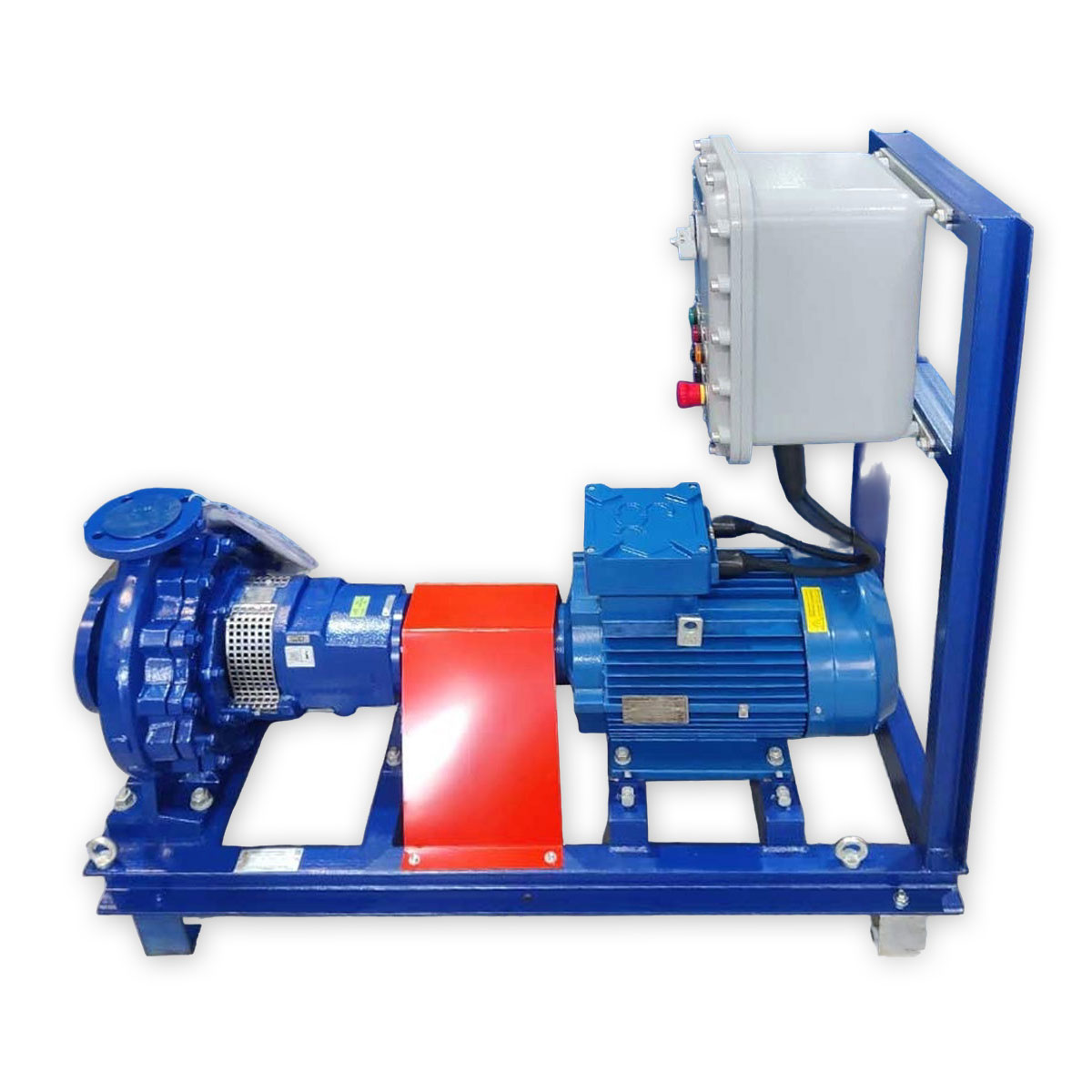

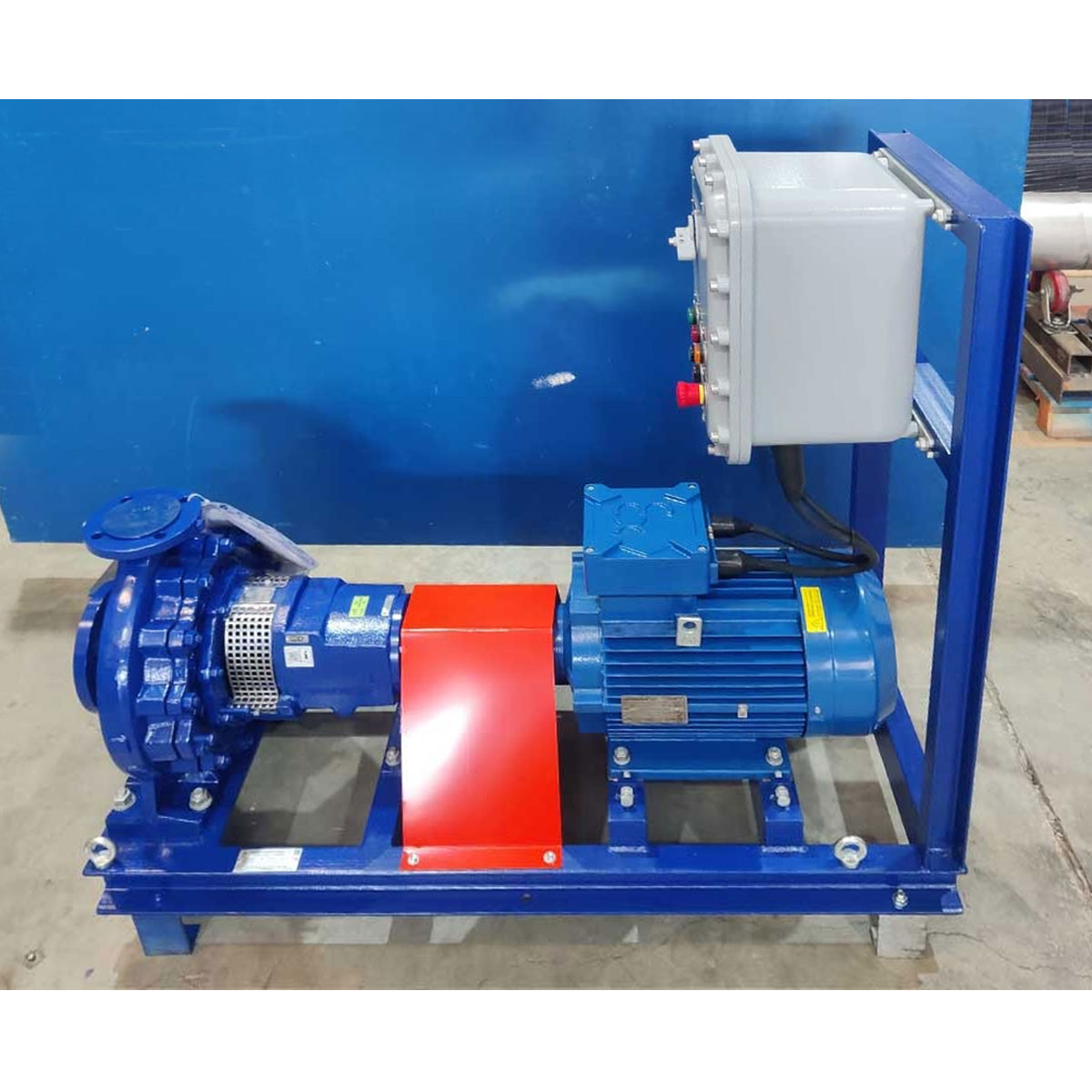

Simplex Fuel Transfer Skid Pump

Simplex Fuel Transfer Skid is a single-pump, factory-assembled unit designed for the efficient transfer of diesel and fuel oil between storage tanks and day tanks. Pre-piped, pre-wired, and mounted on a bunded steel skid, it provides a ready-to-install fuel transfer solution for industrial, commercial, and infrastructure applications.

For product enquiry, call us at +966 534503567 or send enquiry

Product codeSKID-TX-SIMPLEX

Availability In stock

CategoriesFuel Systems, Fuel Transfer Skids

Brand: SamamCo

Description

Simplex Fuel Transfer Skid combines a heavy-duty self-priming gear pump, electric motor, and integrated control panel on a single structural steel skid with a bunded containment base. Factory-assembled and tested prior to dispatch, it minimizes site installation time and ensures reliable, consistent fuel transfer operation from day one. Its compact footprint makes it suitable for plant rooms, generator compounds, and outdoor installations with appropriate enclosure options.

Features

Pump & Mechanical

Self-priming positive displacement gear pump — efficient at high pressure with high tolerance to system contamination
Suitable for diesel, fuel oil, and similar low-viscosity petroleum products
Built-in bypass pressure relief valve — protects system against overpressure
Inlet isolation valve and outlet isolation valve
Inline fuel strainer/filter with cleanable element
Flexible hose connections to reduce vibration transmission
Inlet vacuum gauge and outlet pressure gauge with isolation hand valves

Skid & Containment

Structural steel skid frame — hot-dip galvanized or epoxy powder-coated finish
Integrated drip tray / bunded containment sump with leak sensor
All pipework hard-piped and factory-tested prior to dispatch
Weatherproof enclosure option available for outdoor installation

Control & Electrical

Integrated control panel with motor starter and overload relay
HOA (Hand/Off/Auto) selector switch for flexible operation modes
Pump run indicator light; alarm output for fault conditions
No-flow / loss-of-flow alarm
Automatic start/stop via external level signal (float switch or 4–20mA)
Door-interlocked disconnect switch for safe isolation
Wiring termination to clearly labelled terminal block for site connection

Applications

Diesel transfer from bulk storage to day tanks or generator base tanks
Fuel oil transfer in commercial and industrial buildings
Generator fuel supply systems
Mining and construction site fuel distribution
Aviation and marine fuel handling (with appropriate pump selection)

Specifications

Parameter	Value
Configuration	Simplex (single pump)
Pump Type	Self-priming positive displacement gear pump
Typical Flow Range	Up to 200 LPM (model dependent)
Max Discharge Pressure	Up to 13.8 bar (200 psi) — model dependent
Max Suction Lift	Up to 6 m (wet); up to 3 m (dry)
Fluid Compatibility	Diesel, fuel oil, kerosene, and similar petroleum products
Motor	TEFC (Totally Enclosed Fan Cooled) electric motor; 0.25–3.7 kW (model dependent)
Power Supply	240V AC single-phase or 415V AC three-phase (model dependent)
Control Panel	HOA selector, motor starter with overload relay, door-interlocked disconnect
Enclosure Rating	IP54 standard; IP65 weatherproof option
Skid Finish	Hot-dip galvanised or epoxy powder-coat
Containment	Integrated bunded drip tray with leak sensor
Standard Fittings	Inlet/outlet isolation valves, pressure relief valve, strainer, pressure and vacuum gauges
Connections	BSP or flanged (model dependent)
Operation Modes	Manual (Hand), Off, Automatic (via external signal)
Alarm Outputs	No-flow / loss-of-flow alarm; leak detection alarm
