Description

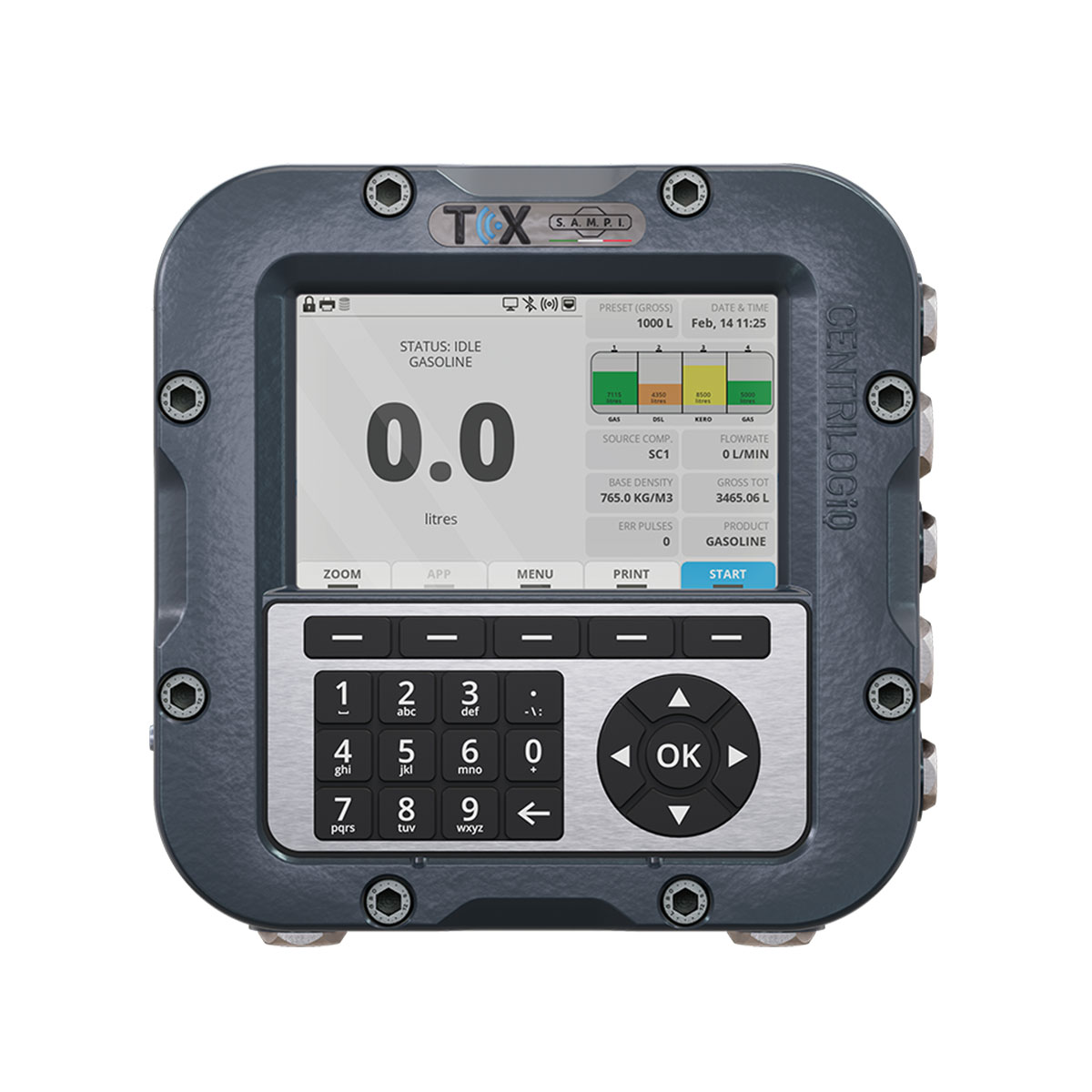

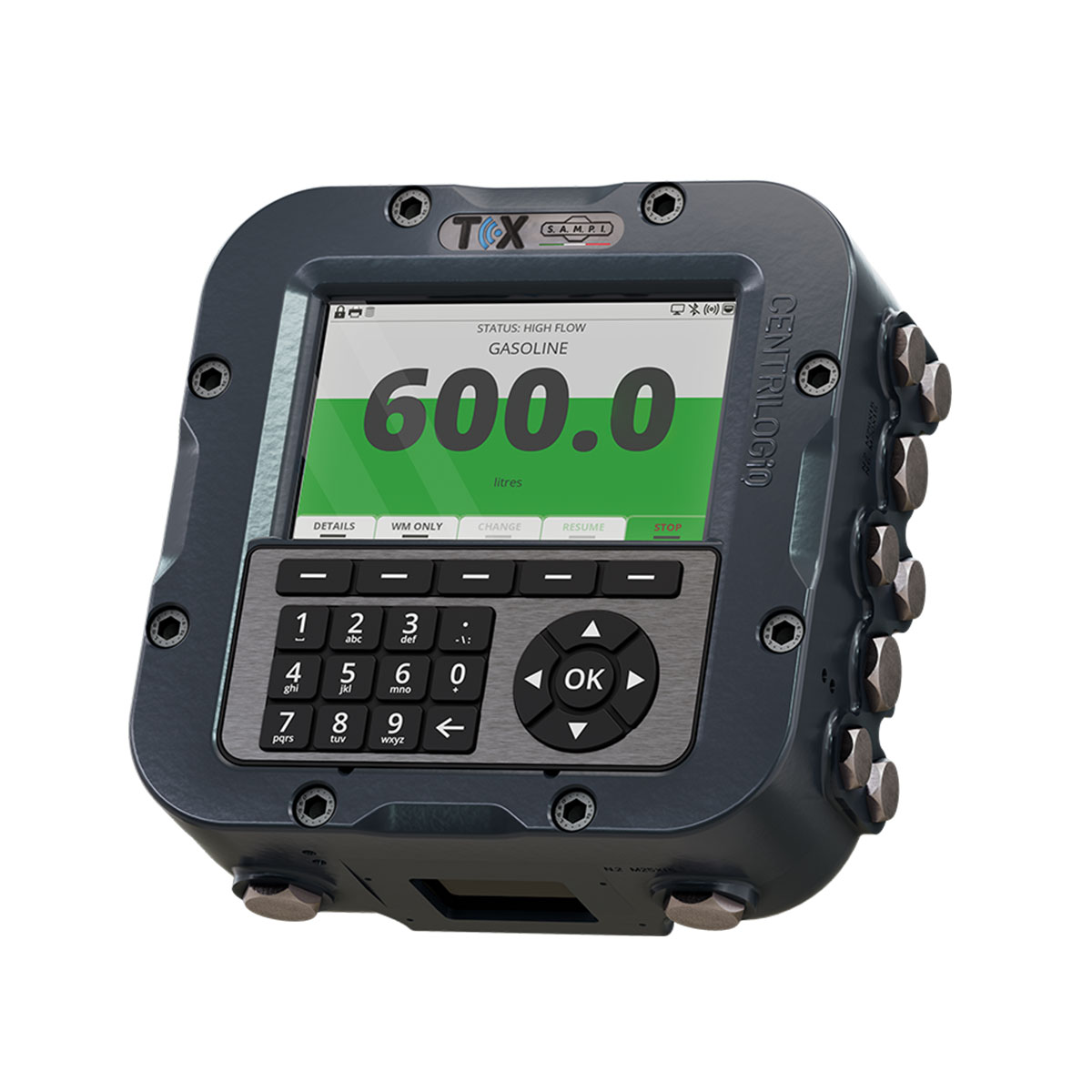

Sampi TEX is a field-proven fuel management register built for demanding fuel delivery environments. Housed in an IP66-rated, corrosion-resistant enclosure and certified to ATEX Ex db ib IIB T4 Gb, it is suitable for use in hazardous areas. Its dual-core ARM processor running Linux Debian delivers a responsive, customisable interface that guides operators through every fueling event — minimising errors and maximising throughput. A dedicated Modbus interface for mass flow meters and optional expansion boards make it highly adaptable to complex metering installations.
Features
Interface & Display
- 7″” TFT-LCD display, 800 × 480 pixels, 16.7 million colours, LED backlit
- Customisable display parameters and layout options — operators see only the information they need
- Non-conductive, petroleum and UV-resistant elastomer keypad
- 7+ available interface languages
System & Connectivity
- Dual-core processor: ARM A7 @ 1 GHz + ARM M4 @ 200 MHz; Linux Debian OS
- 1 GB LPDDR2 RAM; 8 GB eMMC storage, expandable to 64 GB via SD card
- Wi-Fi connectivity; Ethernet port with TCP/IP Modbus protocol
- USB input
- Remote software update capability
Advanced Features
- Dual meter management with dedicated second meter board (internal)
- Dedicated Modbus interface for mass flow meter communication
- User smart hierarchy and anti-theft system
- Hose reel configuration and truck inventory management
- Scenarios mode and custom logic programming
- Remote control capability
- I/O additional board (external, serial-connected) for expanded I/O
Applications
- Road tanker and bulk fuel delivery
- Hazardous area fueling installations (ATEX Zone 1)
- Fleet fuel management and inventory tracking
- Aviation and industrial fuel dispensing
- Multi-product fueling with dual meter configurations
