Description

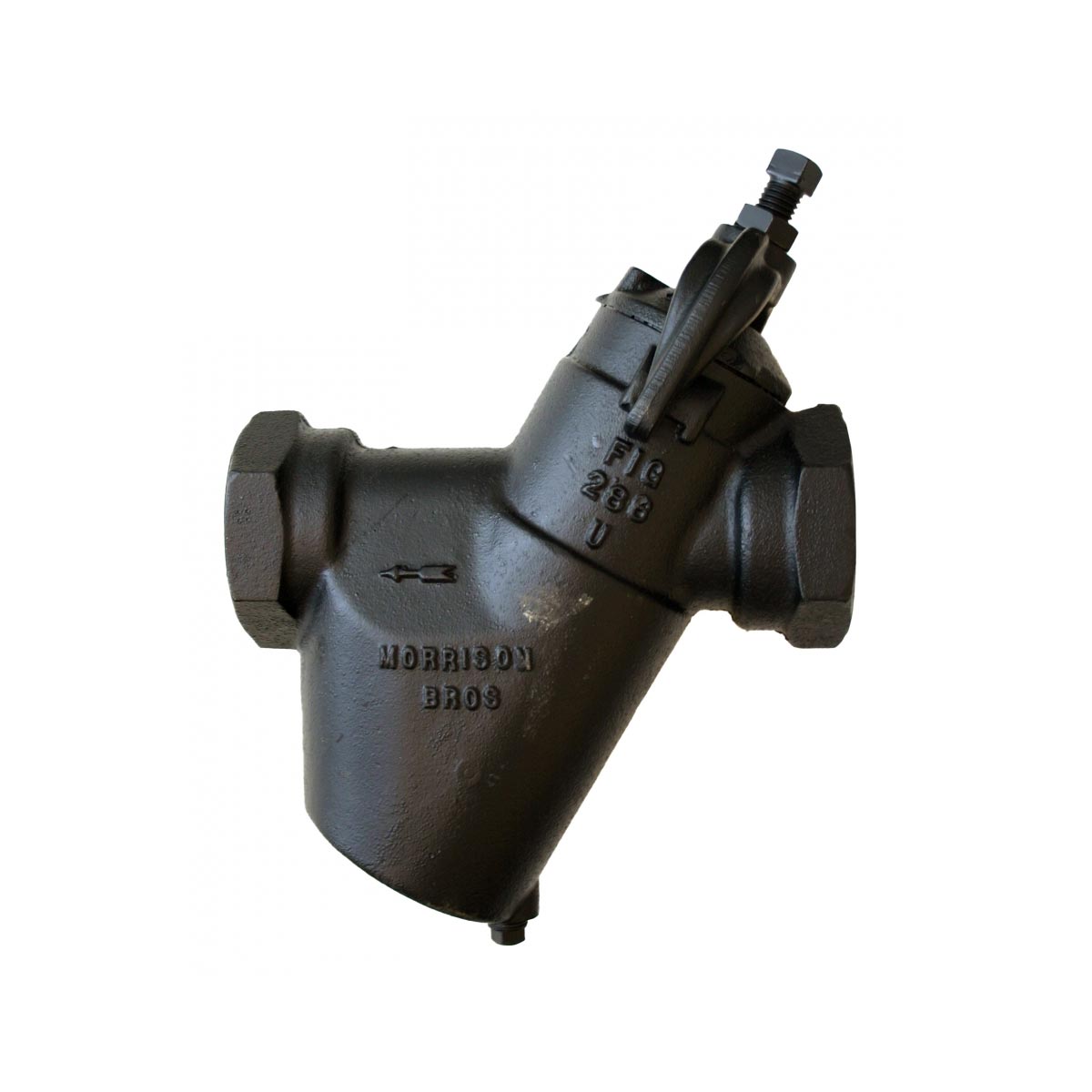

The Morrison Bros FIG 286 is a cast iron Y-type top clean-out line strainer for horizontal pipeline service, rated to 50 PSI operating pressure. Unlike bottom clean-out designs, the top-access cap provides convenient basket removal in installations where underside access is restricted. Available in 2″” and 3″” NPT with gasket options in nitrile composite, Buna-N, or PTFE and stainless steel screens in seven mesh sizes.
Features
- Y-type body for efficient inline straining in horizontal pipelines
- Top clean-out design for convenient basket access where underside clearance is limited
- Rated to 50 PSI operating pressure
- NPT female threaded connections
- Cast iron body and cap; ductile iron yoke
- 304 stainless steel strainer basket
- Gasket options: nitrile composite, Buna-N, or PTFE
- Screens available in 6, 10, 20, 40, 60, 80, or 100 mesh
- Less-screen variants available for custom screen installations
Applications
- Horizontal pipeline installations requiring inline debris filtration
- Installations with restricted underside access requiring top clean-out
- Protection of downstream pumps, meters, and process equipment
- Fuel, water, and general liquid handling systems
