Description

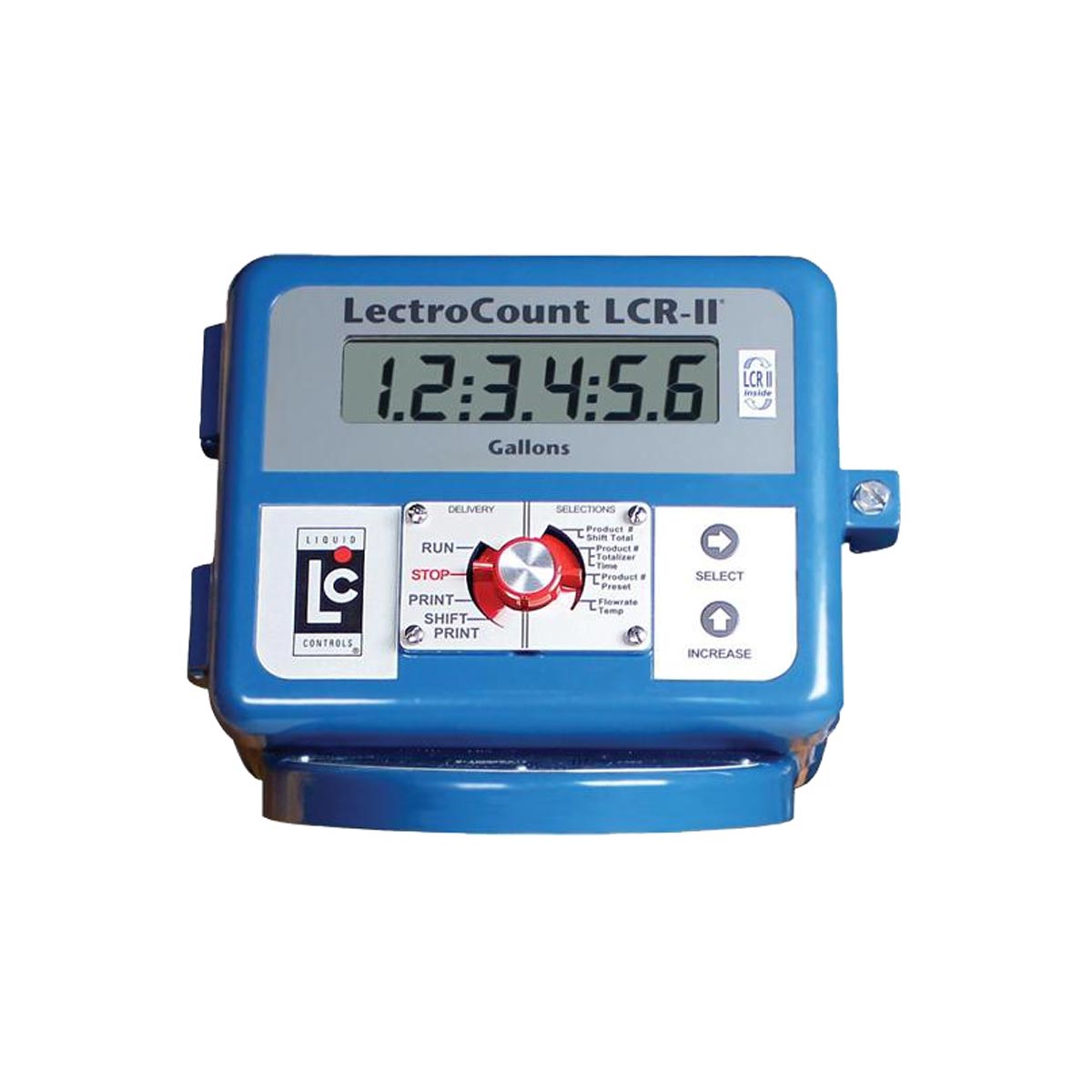

Liquid Controls LCR-II is a microprocessor-based register for Weights & Measures approved custody transfer in liquid fuel delivery applications. It configures meter systems and interfaces with electronic components, including pumps, injectors, and shutdown devices. Its simple red rotary selector switch allows full in-field operation and programming without external devices.
Features
Metering & Custody Transfer
- Weights & Measures approved custody transfer — product delivery and ticket generation
- Four product calibrations; multi-point and single-point calibration
- Electronic temperature volume compensation (ETVC)
- 10-digit non-resettable totaliser and delivery quantity display
- Printed delivery, shift, and diagnostic tickets
- No-flow timer
- Metrological data collection
Controls & Outputs
- Easy-to-use RUN, STOP, PRINT, SHIFT PRINT red rotary selector switch
- Two control buttons for accessing and adjusting programmable data
- Two configurable auxiliary outputs: On, Off, On During Delivery, Monitor Flow Rate, Toggle Flow Rate, Flow Direction
- Electronic valve control
- Electronic air or vapour elimination
- Electronic presetting by volume
- RS-232 / RS-485 communication ports
Versatility & Compatibility
- Compatible with most flow meter types: positive displacement (PD), amplified turbine, electromagnetic, and mass flow meters
- Stand-alone operation or slave to host controller
- Security settings for access control
- Hinged door for easy access to internal connections
- One closure connection point with Weights & Measures sealable captive fastener
Applications
- Road tanker and bulk liquid fuel delivery
- Custody transfer metering systems
- Mobile and depot fuel dispensing
