Description

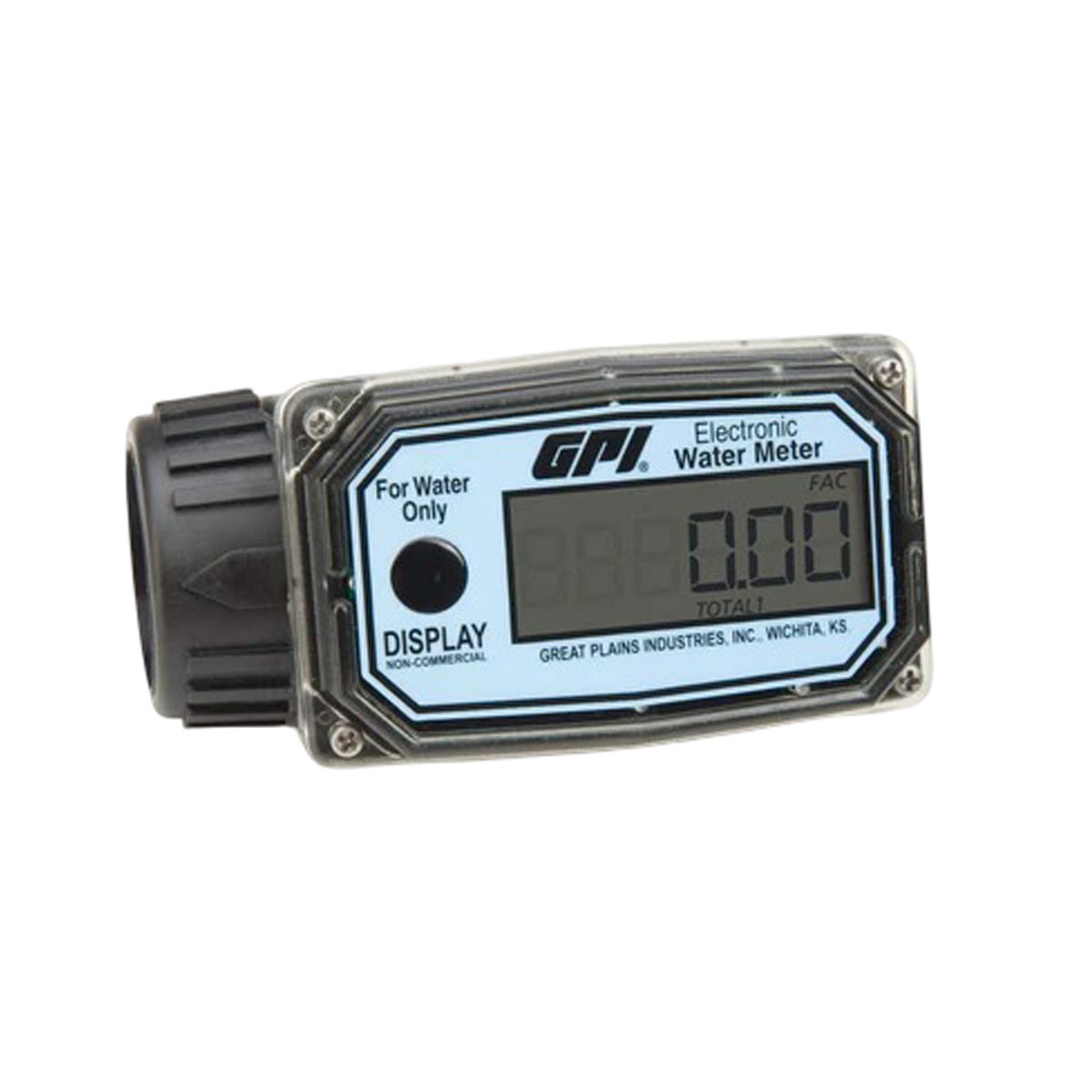

The FLOMEC 01N Series is a simple, compact turbine flow meter designed for economical and accurate water measurement in rugged environments. Its in-line design allows direct mounting on the end of a hose or pipe, and it comes complete with a turbine assembly, microprocessor, and LCD readout — no additional electronics required.
Features
- Turbine measurement technology — accurate and reliable for low-viscosity liquids
- Rugged nylon housing for economical, durable construction
- 1″” (25 mm) connection size — compatible with commonly found fittings and application equipment
- 10–100 LPM flow range supports both pump-fed and gravity-fed systems
- Battery-powered via 2× AAA alkaline batteries — no external power required
- 4-digit LCD display showing batch and cumulative totals
- Selectable measurement units — gallons or litres
- Auto on/off function and factory-only calibration for water
- Female NPT or ISO fitting options available
- Unidirectional; can mount horizontally or vertically
Applications
- Commercial lawn and garden water metering
- Water measurement for concrete mixing
- Agricultural sprayers
- Industrial and commercial cleaning tanks
- Commercial mixing tanks
- Golf courses and public parks
