Description

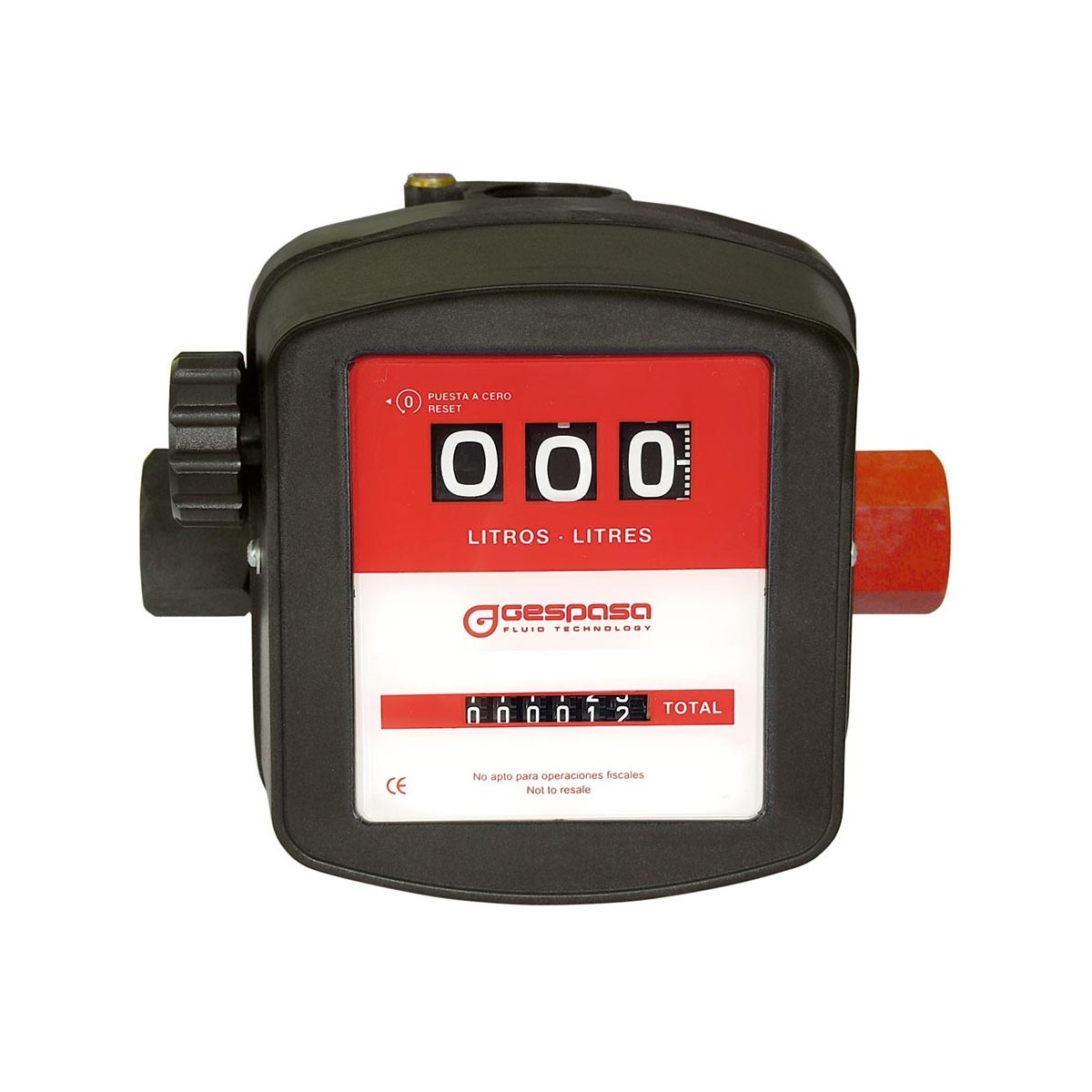

The Gespasa MG-80 uses an oscillating disc chamber housed in a fireproof polyamide body, delivering reliable mechanical flow measurement for hydrocarbons and AdBlue® without external power. Accuracy improves progressively from ±1% across the full range down to ±0.5% in the optimal mid-range. The MG-80 is designed for private use only.
Features
- Fireproof oscillating disc measuring chamber
- Progressive accuracy: ±1% (15–90 L/min) · ±0.8% (20–90 L/min) · ±0.5% (50–70 L/min)
- 3-digit partial indicator and 6-digit totaliser
- Polyamide + fibreglass housing — lightweight and chemically resistant
- 1″” GAS (BSP) connection with 3 inlets and 2 outlets for flexible installation
- Supplied with 2 additional male/female 1″” GAS (BSP) adapters
- Built-in 350 µm filter-sieve integrated into the red BSP adapter
- No external power required — fully mechanical operation
- Viton joint variant available (MG-80V) for enhanced chemical compatibility
- For private use only — not suitable for fiscal operations
Applications
- Diesel and petrol dispensing
- AdBlue® / DEF measurement
- Hydrocarbon liquid metering (consult factory for other fluids)
