Description

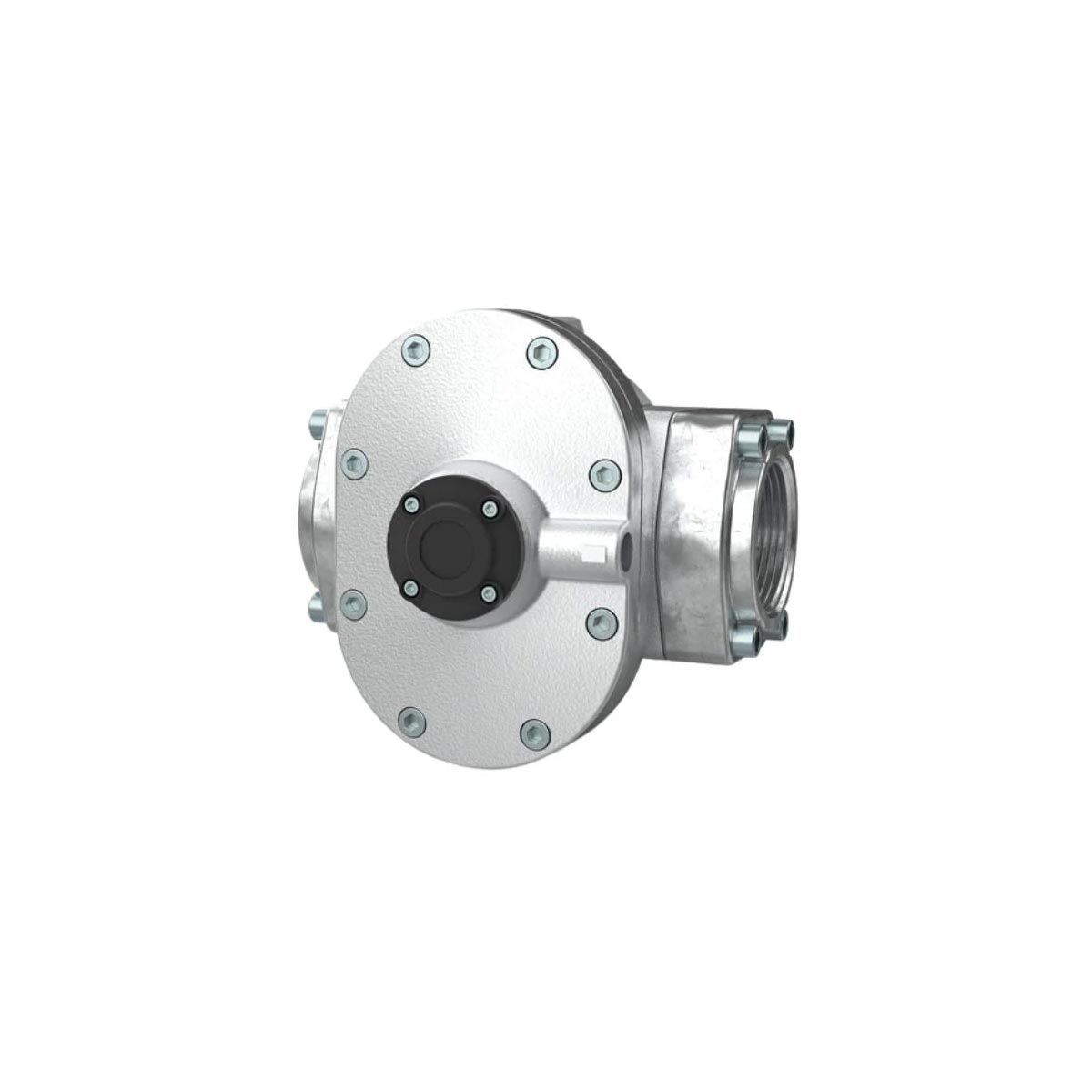

FLOMEC OM Series large capacity oval gear meters provide direct volumetric measurement of bulk fuels and oils without flow conditioning. Featuring a low-pressure drop design for efficient high-flow transfer, these factory-calibrated meters offer long-term reliability and seamless integration with external control and data acquisition systems in challenging, high-throughput industrial application environments.
Features
- Oval gear positive displacement technology — accurate direct volumetric measurement
- Accuracy: ±0.5% of reading
- Repeatability: ±0.03% of reading
- Flow range: 35–2,500 L/min across 3″” to 4″” pipe sizes (size dependent)
- Low-pressure drop design for efficient high-flow liquid transfer
- No flow conditioning required — no straight pipe runs needed
- Only two moving parts — low maintenance and high reliability
- Pulse output for integration with control and monitoring systems
- Factory calibrated
- Aluminum body with PPS rotors and Viton® O-rings
- Wide operating temperature range: −40 to +150 °C
Applications
- Bulk transfer of diesel fuel
- Lubricating oils and greases
- Edible oils
