Description

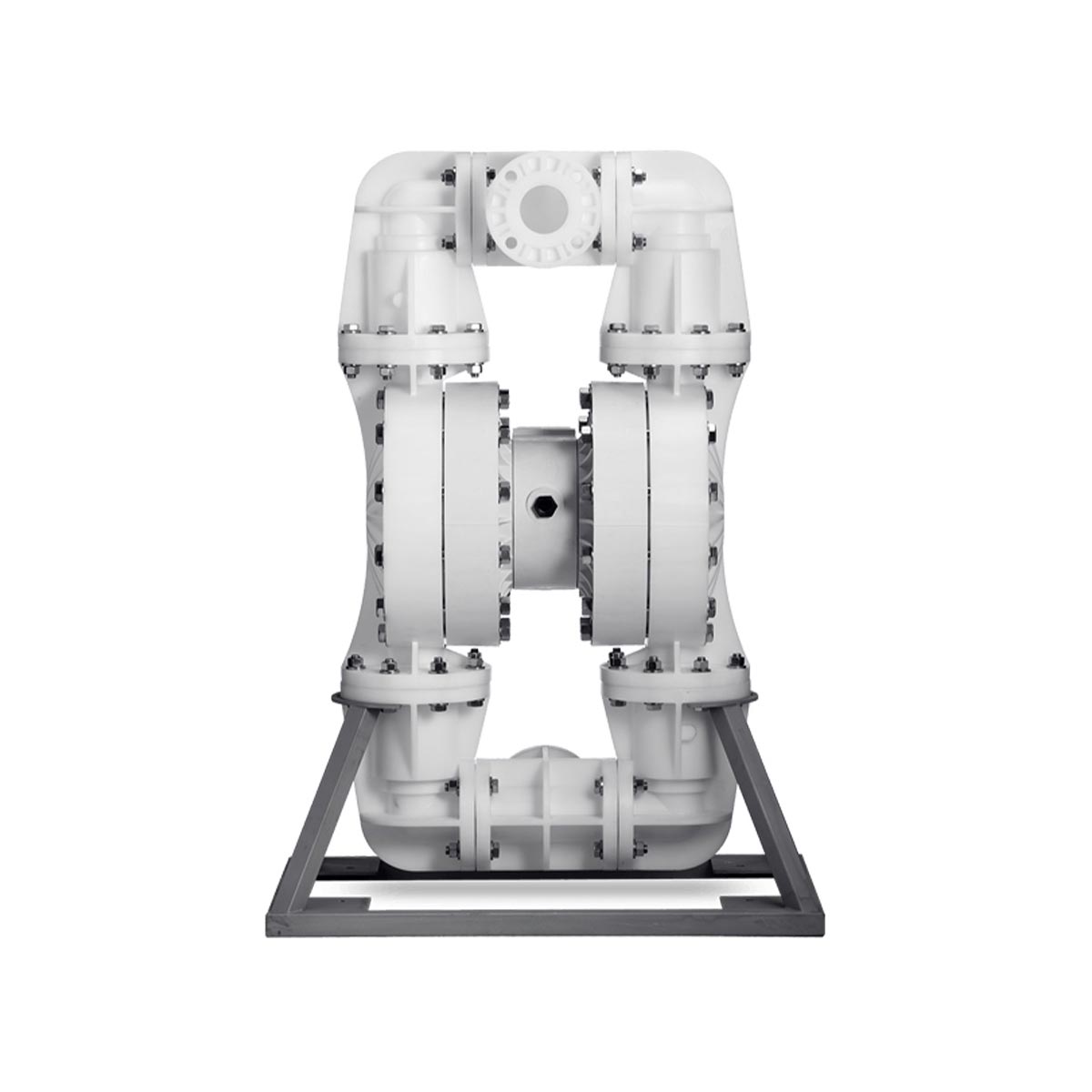

The Wilden® P1500 is a 76 mm (3″”) Pro-Flo® Series bolted plastic AODD pump available in injection-moulded polypropylene or PVDF. Its redesigned liquid path reduces internal friction to maximise output and extend diaphragm life. The Pro-Flo® Air Distribution System (ADS) provides lube-free operation, anti-freeze capability, and the longest Mean Time Between Repair (MTBR) in its class.
Features
- Bolted construction for superior containment and leak-free operation
- DIN/ANSI flanged inlet and discharge connections (150 lb. standard)
- Pro-Flo® ADS: lube-free, anti-freeze, increased on/off reliability
- Redesigned liquid path reduces internal friction for maximum output
- Large-solids passage up to 12.7 mm (1/2″”)
- High suction lift capability — up to 8.6 m (28.4′) wet
- Dry-run capable; intrinsically safe
- Portable and submersible design
- Easy disassembly and maintenance with standard hand tools
Performance
- Max Flow Rate: Full-Stroke PTFE — 878 lpm (232 gpm); Reduced-Stroke PTFE — 784 lpm (207 gpm)
- Max Pressure: 6.9 bar (100 psi) — Polypropylene; 8.6 bar (125 psi) — PVDF
- Max Suction Lift (Dry): Full-Stroke PTFE — 5.5 m (18.2′); Reduced-Stroke PTFE — 3.63 m (12′)
- Max Suction Lift (Wet): 8.6 m (28.4′) — both configurations
- Max Diameter Solids: 12.7 mm (1/2″”)
- Displacement per Stroke: Full-Stroke PTFE — 5.8 L (1.52 gal); Reduced-Stroke PTFE — 3.75 L (0.99 gal)
Options
- Wetted housing materials: Polypropylene, PVDF
- Flanged connections: ANSI or DIN (150 lb. standard)
- Elastomer options: EPDM, Neoprene, PTFE, Saniflex™, Wil-Flex™ — selected by temperature range and chemical compatibility
Applications
- Chemical transfer and dosing
- Viscous and non-viscous fluid handling
- Shear-sensitive product transfer
- Abrasive slurry and solids-laden fluid pumping
- Portable and submersible installations
- Industrial process fluid transfer requiring superior containment
