Description

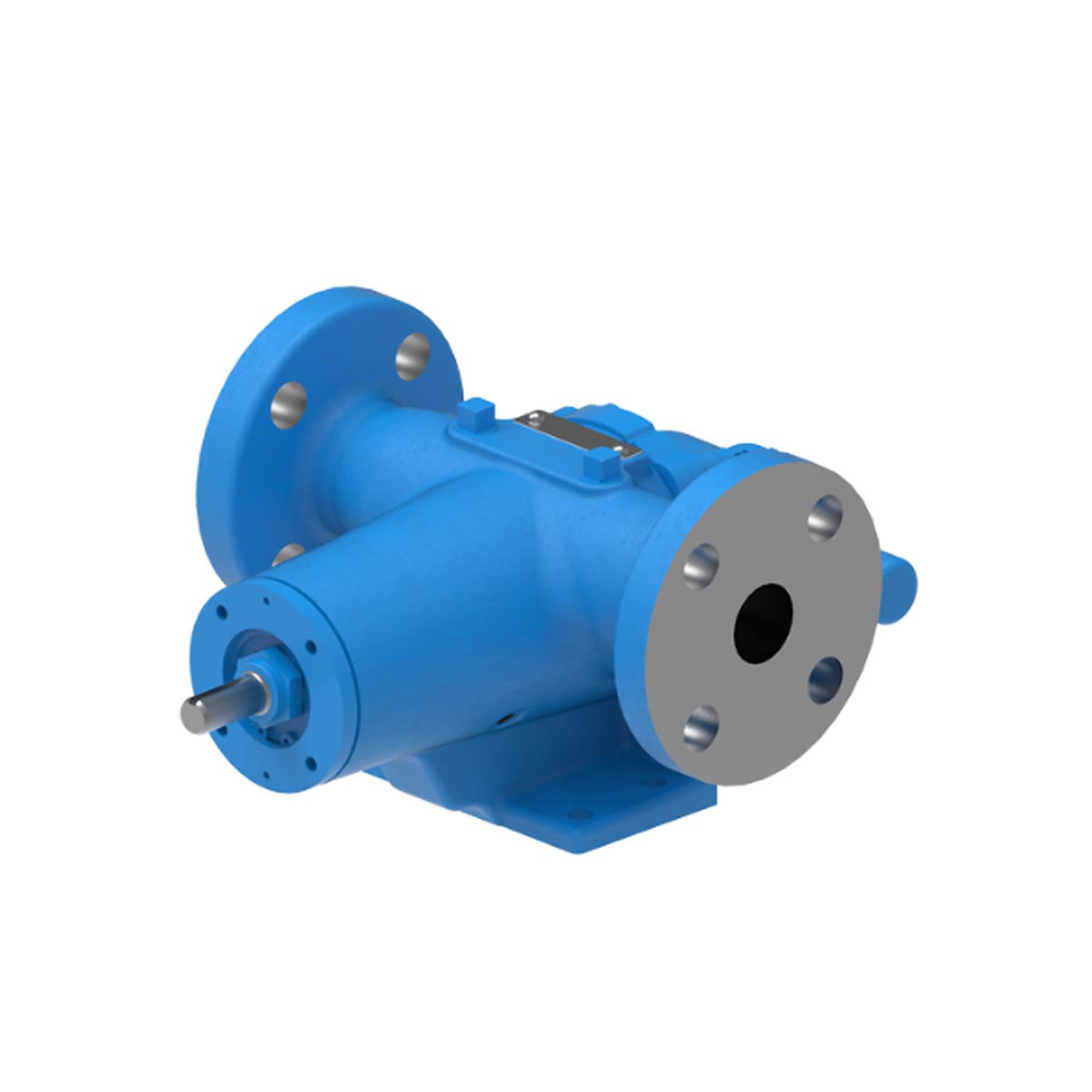

The Viking Pump 4197 Series™ is a Motor Speed Product Line stainless steel internal gear pump designed for continuous or intermittent duty in corrosive, chemical, and petroleum service. The casing is manufactured from ASTM A743 Grade CF8M stainless steel, and internal pumping gears are constructed from Type 316 and Type 770 Stainless Steel alloy, enabling non-galling high-speed operation across a wide pH range. The positive displacement internal gear principle delivers smooth, consistent flow with minimal pulsation.
Features
- Stainless steel casing (ASTM A743, Grade CF8M) for broad corrosion resistance across a wide pH range
- Type 316 and Type 770 stainless steel rotor and idler gears — non-galling for reliable thin-liquid handling; PPS composite idlers also available
- Sealed-for-life anti-friction ball bearings — inner casing ball bearing outside the seal plus radial thrust ball bearing; rated to 200 PSI (14 bar), no relubrication required
- Threaded one-piece bearing housing for precise end clearance adjustment to maintain new-pump efficiency
- One-piece casing ensures alignment for maximum bearing and seal life
- Pressure-lubricated idler pin extends idler pin/bushing life on thin liquid applications (AS, AK, AL sizes)
- Integral over-pressure relief valve standard — head-mounted (GG, HJ, HL) or casing-mounted (AS, AK, AL)
- Mechanical seal standard: self-adjusting positive-drive PTFE construction — carbon graphite rotating face, silicon carbide stationary seat, stainless steel spring; suited for solvents and alcohols
- Class 150 ANSI flanged ports standard on all sizes — easy in-line mounting to almost any piping system
- Direct-connected to 50 Hz or 60 Hz motors via flexible coupling with guard on steel base (D-drive units)
Performance
- Capacity: Up to 75 GPM (17 m³/h)
- Viscosity: 28 to 25,000 SSU (1 to 5,500 cSt)
- Max Pressure: 200 PSI (14 bar) at ≥750 SSU (162 cSt); 150 PSI (10 bar) at 100–750 SSU; 100 PSI (7 bar) at 38–100 SSU; 75 PSI (5 bar) below 38 SSU (AS/AK/AL sizes)
- Temperature Range: 0 to +350 °F (−20 to +175 °C); extra clearances required above 225 °F (107 °C)
Options
- Porting: Opposite 180°; Flanged ASME/ANSI Class 150
- Drives: D — Direct-mounted drive (flexible coupling to 1200 or 1800 RPM motor on formed steel base)
- Mounting: Foot mount (horizontal)
- Sealing: Behind-the-rotor seal; Balanced seal
Applications
- Solvents and alcohol transfer and circulation
- Compressor lubrication systems
- Fuels and refined petroleum product transfer
- Lube oil circulation and booster service
- Chemical, general industrial, and petrochemical process service
- Filtering, circulating, and transferring corrosive thin liquids
