Description

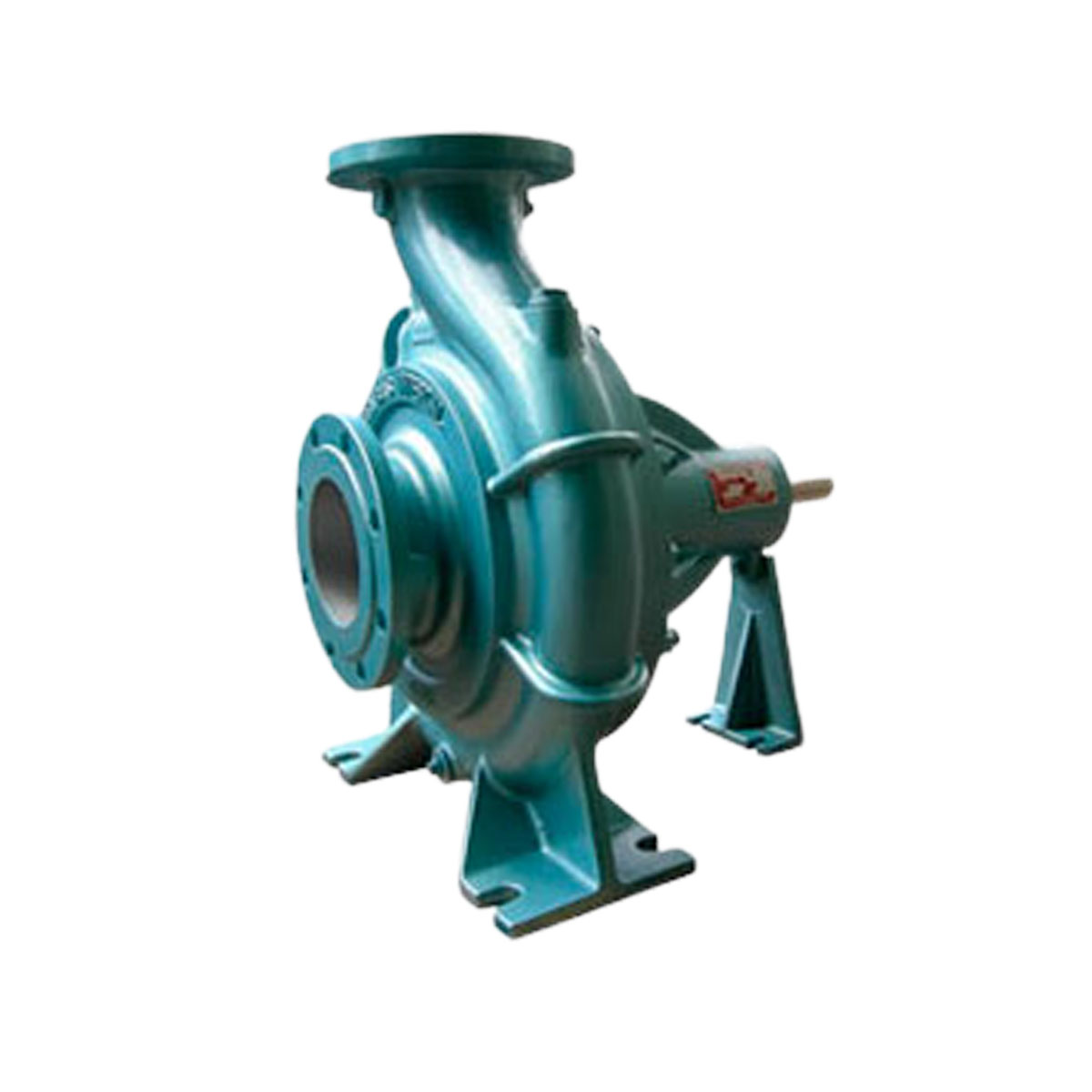

Intercal NIR (horizontal) and V-NIR (vertical) series are DIN Norm centrifugal pumps fully compliant with EN 733 (DIN 24255). Rotor removal is possible without disconnecting suction or discharge pipework, provided a standard spacer coupling is fitted. Within each of the five bearing bracket sizes, the shaft, bearings, mechanical seal or packing, impeller nut, and bearing cover seals are fully interchangeable across all pump models in that bracket group.
Features
- EN 733 / DIN 24255 compliant — unified hydraulic performance and dimensional standards
- 50 pump models across 5 bearing bracket sizes with fully interchangeable internal components
- Horizontal (NIR) and vertical (V-NIR) single-stage configurations
- Axial suction / radial discharge; cantilevered hydraulically balanced impeller
- Rotor removable without disconnecting pipework (standard spacer coupling required)
- Bearing lubrication: grease or oil (selectable)
- Sealing options: braided packing, single mechanical seal, special single mechanical seal, or double mechanical seal (to DIN 24960)
- Coupling guard compliant with EU Machinery Directive
- Out-of-norm models available to complement the standard range
Mechanical Seal Options
- Single Seal: For clean or slightly contaminated non-abrasive liquids up to 140 °C; self-lubricated by pumped liquid
- Special Single Seal: For clean or turbid liquids with mildly abrasive solids; lubricated by pumped liquid or external flush depending on abrasivity
- Double Seal: For higher-abrasivity liquids or fluids with sediment; requires independent external liquid circulation circuit; max 140 °C
Applications
- Potable water supply and distribution
- Irrigation and water management
- Industrial water circuits and cooling systems
- HVAC and building services
- General industrial liquid transfer
