Description

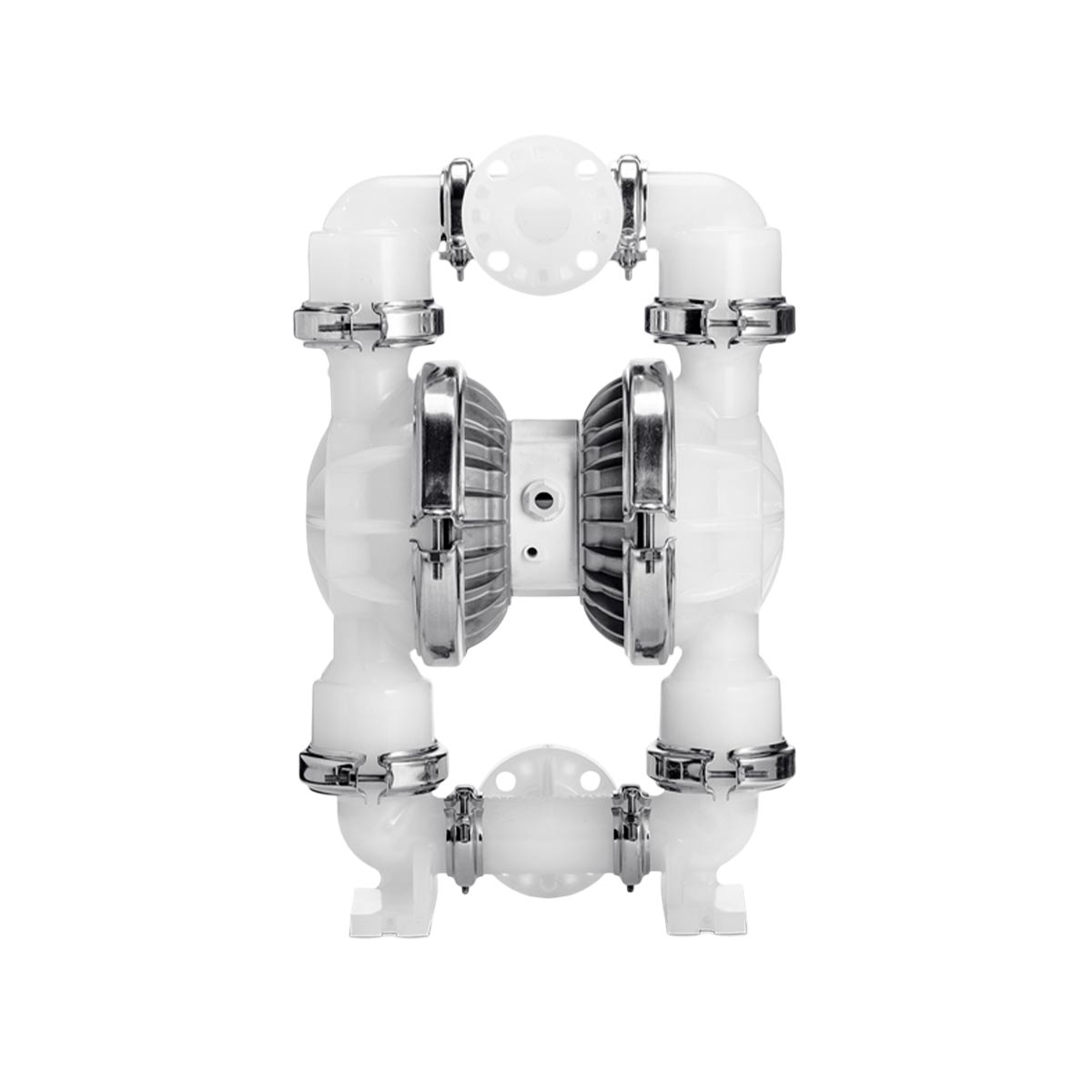

The Wilden® P8 is a 51 mm (2″”) Pro-Flo® Series clamped plastic AODD pump designed for simple, rugged, and reliable chemical applications. Clamped construction allows the pump to be fully disassembled and reassembled with a single tool, minimising maintenance costs. Proven through decades of performance, it delivers efficient, high-volume fluid transfer.
Features
- Clamped construction for fast, single-tool maintenance and quick serviceability
- DIN and ANSI flanged inlet and discharge liquid connections
- Rotatable inlet and discharge for installation flexibility
- Five diaphragm options: Rubber, TPE, Full-Stroke PTFE, Reduced-Stroke PTFE, Ultra-Flex™
- Lube-free, self-priming operation; no mechanical seals
- Run-dry capable without damage
- Solids passage up to 6.35 mm (1/4″”)
- High suction lift capability across all diaphragm options
- Low cost with simple installation
- Air chamber available in aluminium, PTFE-coated aluminium, or stainless steel
Performance
- Rubber: Max flow 591 lpm (156 gpm); suction lift 7.4 m (24.4′) dry / 8.6 m (28.4′) wet; displacement 2.8 L (0.73 gal) per stroke
- TPE: Max flow 583 lpm (154 gpm); suction lift 5.9 m (19.3′) dry / 8.6 m (28.4′) wet; displacement 2.8 L (0.73 gal) per stroke
- Full-Stroke PTFE: Max flow 562 lpm (148 gpm); suction lift 6.4 m (21.0′) dry / 8.6 m (28.4′) wet; displacement 2.6 L (0.69 gal) per stroke
- Reduced-Stroke PTFE: Max flow 481 lpm (127 gpm); suction lift 4.27 m (14.0′) dry / 9.45 m (31.0′) wet; displacement 0.53 L (0.47 gal) per stroke
- Ultra-Flex™: Max flow 560 lpm (148 gpm); suction lift 4.88 m (16.0′) dry / 8.84 m (29.0′) wet; displacement 2.12 L (0.56 gal) per stroke
Applications
- Chemical transfer and dosing
- Paints, coatings, inks, and dyes
- Mining and mineral processing
- Pharmaceutical and specialty chemical processes
- Water and wastewater treatment
- Oil and gas and industrial process fluid handling
- Electroplating and surface treatment
