Description

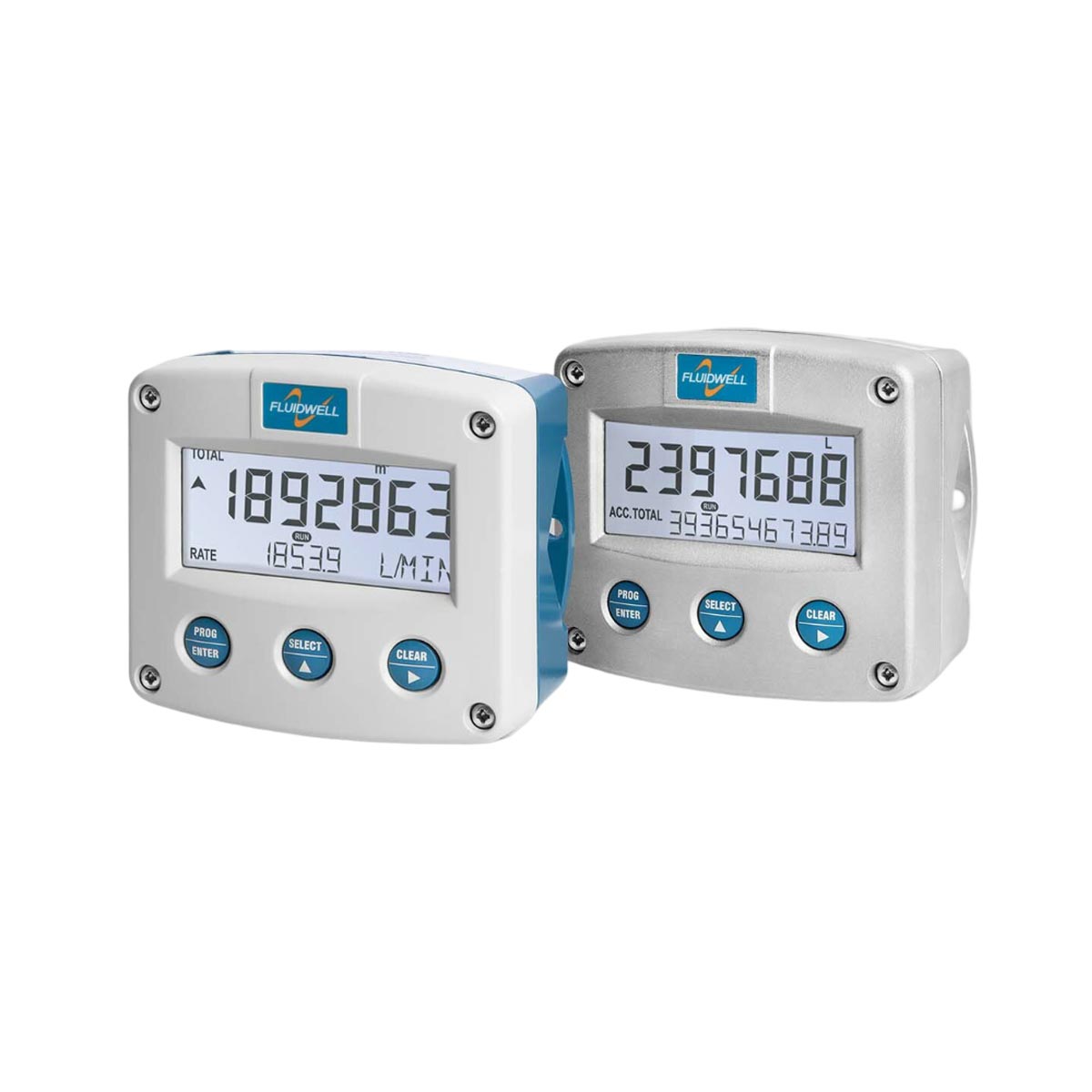

The F012 is a local flow rate indicator and totalizer that displays instantaneous flow rate, resettable running total, and non-resettable accumulated total simultaneously. The running total is reset via a double CLEAR button press, and both totals are backed up in EEPROM memory every minute. Engineering units for flow rate and total are configured independently through an on-screen alphanumeric menu — no adhesive labels required.
Features
- Simultaneous display of flow rate, resettable running total, and non-resettable accumulated total
- Selectable large digit mode: flow rate or total displayed at 17 mm (0.67″”) height
- Flow rate: 7 digits at 17 mm (0.67″”) or 8 mm (0.31″”)
- Running total: 7 digits at 17 mm (0.67″”); resettable via double CLEAR button press
- Accumulated total: 11 digits at 8 mm (0.31″”); non-resettable
- Separate on-screen engineering units for flow rate and total
- Flow rate units: mL, L, m³, mg, g, kg, ton, GAL, bbl, lb, cf, REV, scf, Nm³, NL, P, or none; time units: /sec, /min, /hour, /day
- Total units: mL, L, m³, GAL, USGAL, kg, lb, bbl, or none
- LED backlight with adjustable intensity
- Auto backup of settings and running totals in EEPROM memory
- Explosion-proof option available (ATEX/IECEx)
- Available in GRP, aluminium, or high-grade stainless steel enclosure (IP65, IP67 / NEMA Type 4X)
- Flexible mounting: wall, pipe, panel, or direct sensor mount
- Ambient temperature: −40 to +70 °C (−40 °F to +158 °F)
- Various accessories available
Certifications
- ATEX — Gas (IS): II 1 G Ex ia IIC T4 Ga
- ATEX — Dust (IS): II 1 D Ex ia IIIC T200 100 °C Da
- IECEx — Gas (IS): Ex ia IIC T4 Ga
- IECEx — Dust (IS): Ex ia IIIC T200 100 °C Da
- CSA C-US (IS): Class I/II/III Div 1 Grp A–G T4 · Class I Zone 0 AEx ia IIC T4 Ga
- ATEX/IECEx — Gas (Ex-proof): II 2 G Ex db IIB+H2 T5 Gb
- ATEX/IECEx — Dust (Ex-proof): II 2 D Ex tb IIIC T80 °C Db
Applications
- Local flow rate indication and totalizing without signal retransmission
- Harsh outdoor environments: rain, snow, sand, salt atmosphere
- Oil and gas, chemical, and process plant field installations
- Mobile and truck-mounted metering applications
- Safe and hazardous area installations
