Description

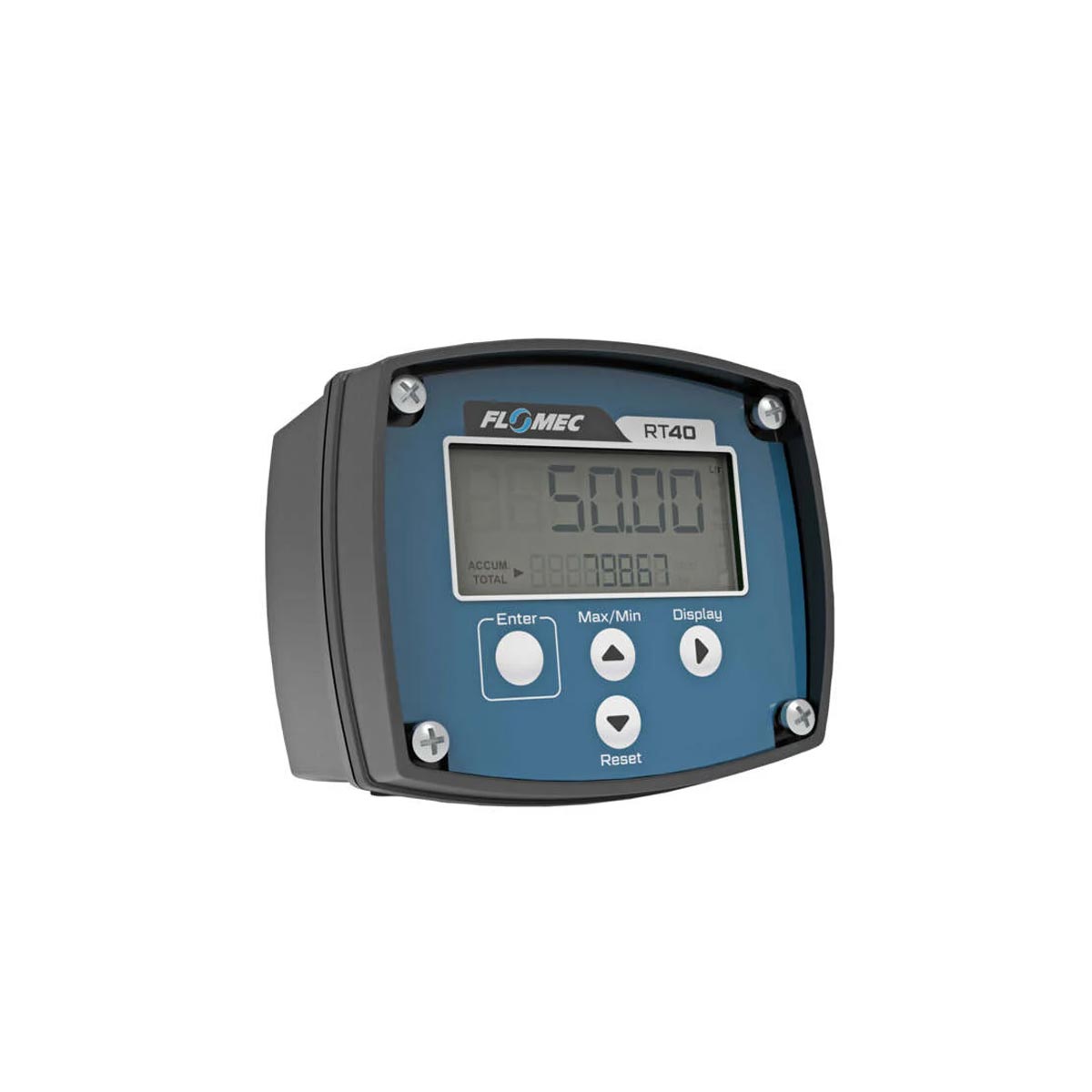

The FLOMEC® RT40 Flow Rate Totaliser is a universal, battery or externally powered display instrument for reading instantaneous flow rate and accumulated totals from pulse-output flow meters. Its configurable digital output supports integration with fuel management systems, PLCs, and remote data loggers, making it a versatile and cost-effective solution for simple installations that need reliable local readout without complex infrastructure.
Features
- Large backlit 6-digit LCD display with 17 mm characters for easy distance reading (backlight requires external power)
- Universal pulse input compatible with reed switch, Hall effect, Namur proximity, voltage, current, and coil signals up to 5 kHz (external power) or 150 Hz (battery)
- Configurable digital output: scalable pulse retransmission or flow alarm (external power required)
- Five-point linearisation for improved accuracy with positive displacement or turbine meters
- Quadrature input supports bi-directional flow measurement (with suitable meter)
- Resettable batch total, non-resettable cumulative total, and instantaneous flow rate display
- Selectable engineering units: L, m³, US gal, Imp gal, mL, qt, fl oz, ft³, bbl, kg, lb, or custom
- Flow rate time base selectable: per second, minute, hour, or day
- PIN-protected programming with plain English on-screen prompts and built-in diagnostics
- Battery powered — approx. 5-year battery life under ideal conditions; nonvolatile memory retains all settings if battery is removed
- Polycarbonate screen protector standard; optional facia protector available
- Robust IP65 aluminium housing or IP66/67 glass-reinforced nylon housing
- Flexible mounting: direct meter mount, wall/surface, horizontal/vertical pipe, or panel mount
Applications
- Mine site flow monitoring and service truck installations
- Fuel management systems (FMS)
- PLC and remote data logger integration
- Industrial process flow totalising
- Mobile and field installations requiring local display
