Description

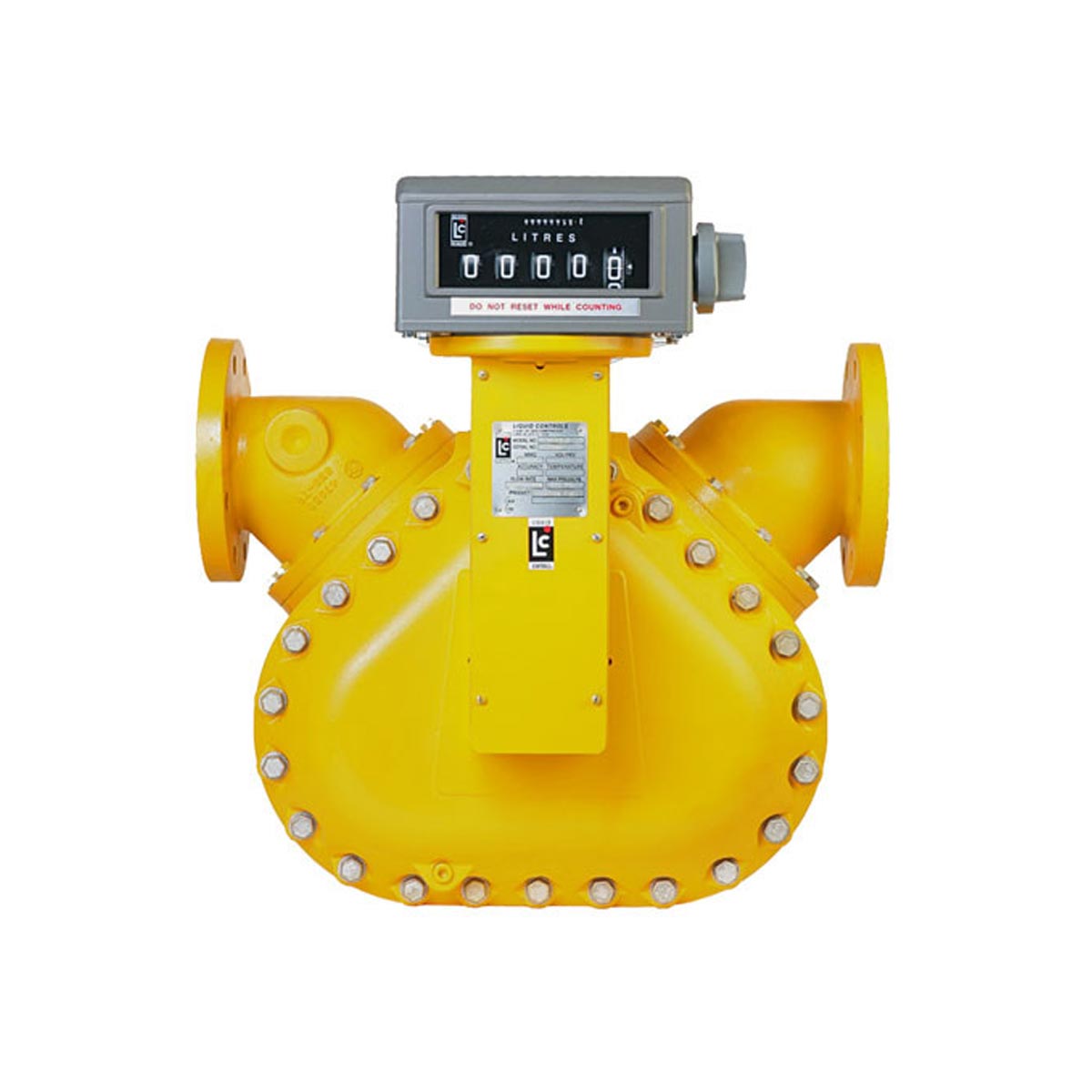

The Liquid Controls M60 is a rotary positive displacement meter built for very high-volume custody transfer of refined petroleum products, aviation fuels, and crude oil. Three synchronised rotors operate without metal-to-metal contact, preserving measurement integrity. The M60 is rated to 600 GPM, making it suited to high-throughput terminal transfer operations.
Features
- No metal-to-metal contact in the measuring chamber — no wear, sustained accuracy, fewer recalibrations
- Low pressure drop — operates on gravity flow or pump pressure
- Wide temperature range: −40 to +85 °C (−40 to +185 °F)
- Aluminum body construction
- Seal options: Buna-N or Viton® (as specified by catalog number)
- Carbon bearings standard across all available meter classes for this model
- 4″” flange connection
- Available in Class 1 (refined petroleum) and Class 2 (aviation/jet fuel) configurations
- Meets NTEP/NIST Handbook 44 and International Weights and Measures accuracy requirements
- Compliant with U.S. Military specifications
Applications
- Leaded and unleaded gasoline
- Diesel fuel and fuel oils
- Aviation and jet fuels
- Kerosene
- Crude oil
- Ethylene glycol (antifreeze)
Certifications
- NTEP / NIST Handbook 44 approved
- International Weights and Measures approved
- U.S. Military specification compliant
