Description

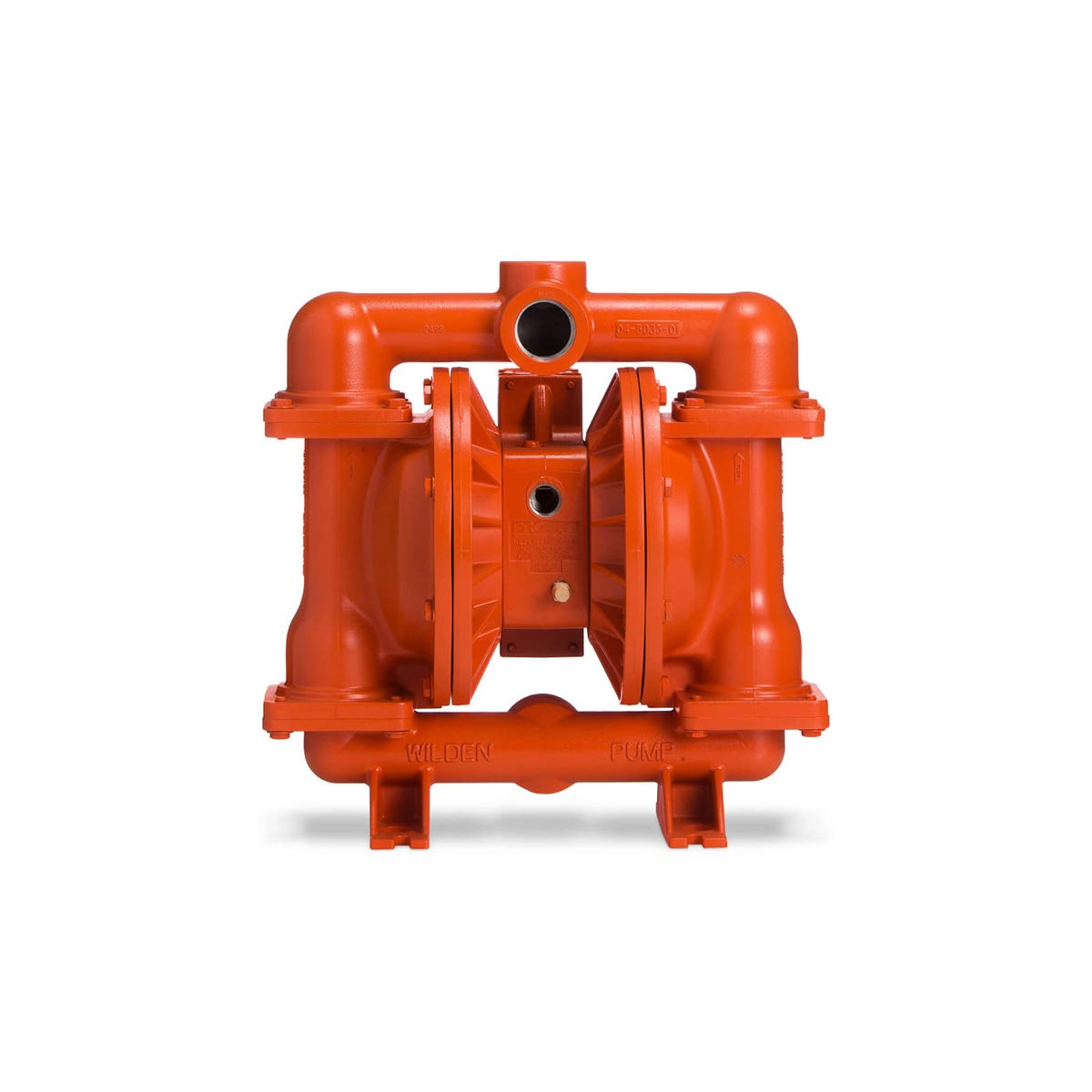

The Wilden® PS420/PS430 is a 38 mm (1-1/2″”) Pro-Flo® SHIFT bolted metal AODD pump setting the standard for performance and containment. Its enhanced liquid path reduces friction, delivering improved flow and extended diaphragm life. The pump retains the exact footprint as Wilden clamped models, enabling direct replacement without any system modification.
Features
- Pro-Flo® SHIFT ADS: Automatically prevents air chamber overfill, delivering up to 60% energy savings and increased flow rates.
- Enhanced Flow Path: Design offers up to 35% greater flow rates compared to competitive AODD models.
- Superior Containment: Bolted construction (FIT) ensures a leak-free seal for critical fluid handling.
- Versatile Connections: PS420 features threaded NPT/BSPT connections; PS430 features DIN/ANSI flanged connections.
- High Suction Lift: Reliable self-priming capability reaching up to 9.3 m (30.6′) wet.
- Ease of Maintenance: Increased on/off reliability and designed for the longest Mean Time Between Repair (MTBR).
Performance
Flow, suction lift, and displacement per stroke vary with diaphragm material:
- Rubber: Max flow 500 lpm (132 gpm); suction lift 5.9 m (19.5′) dry / 9.0 m (29.5′) wet; displacement 1.1 L (0.30 gal) per stroke.
- EZ-Install TPE: Max flow 510 lpm (135 gpm); suction lift 6.2 m (20.4′) dry / 9.0 m (29.5′) wet; displacement 1.1 L (0.30 gal) per stroke.
- Full-Stroke PTFE: Max flow 485 lpm (128 gpm); suction lift 5.5 m (17.9′) dry / 9.3 m (30.6′) wet; displacement 1.1 L (0.30 gal) per stroke.
Options
- Connection type: NPT/BSPT threaded (PS420) or DIN/ANSI flanged (PS430)
- Wetted housing materials: Aluminum, Ductile Iron, Stainless Steel
- Diaphragm options: Rubber, EZ-Install TPE, Full-Stroke PTFE
- Non-wetted materials: Center Section and Air Valve in Aluminum, Polypropylene, or Stainless Steel; Air Chamber in Aluminum or Stainless Steel
Applications
- General industrial fluid transfer
- Oil and gas production
- Paints, coatings, and inks
- Chemical process and transfer
- Water and wastewater treatment
- Mining and ceramics
