Description

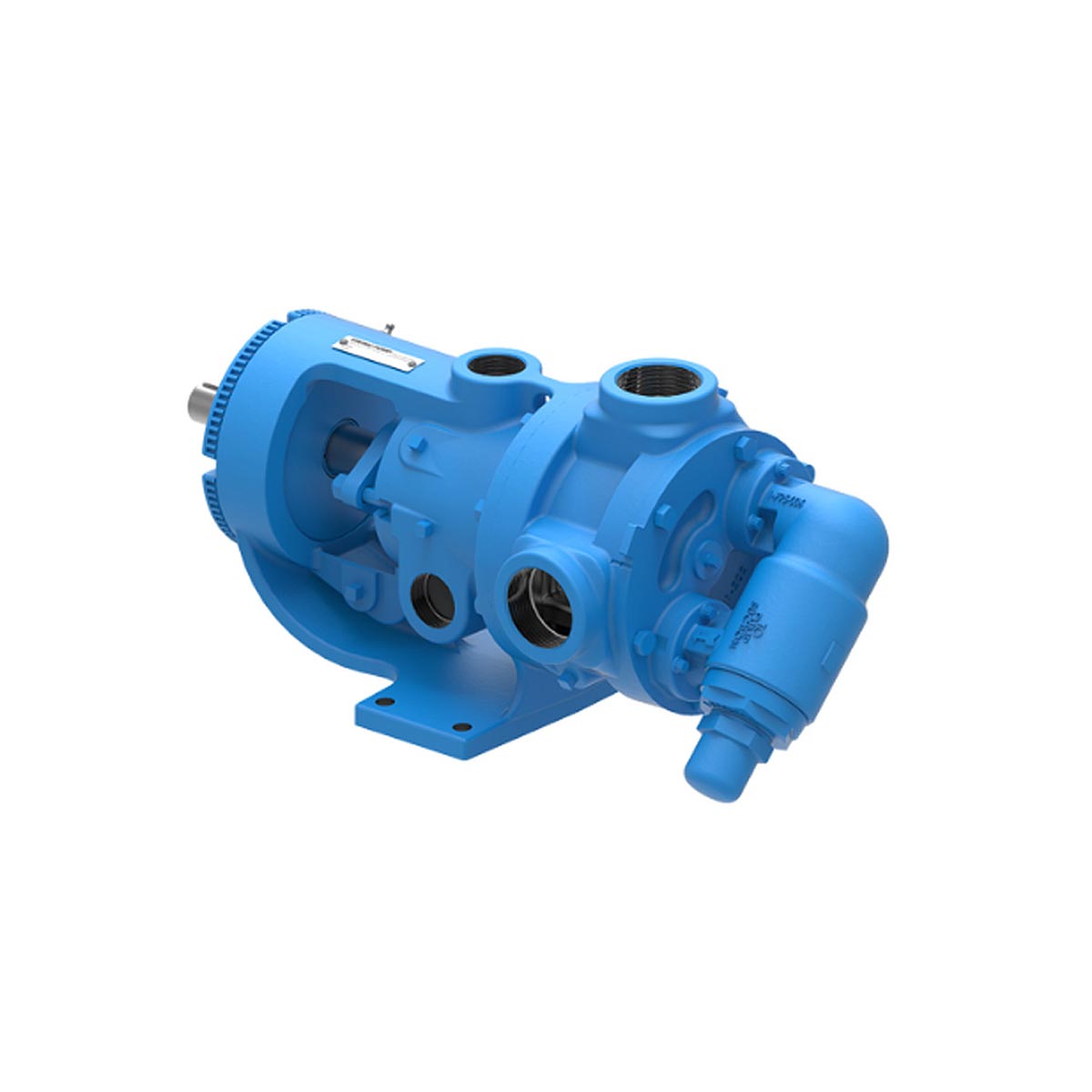

Viking Pump 4224A Series™ is a cast iron internal gear pump designed for handling viscous, temperature-sensitive, and solidifying fluids. Standard jacketing on the head and bracket surrounds the seal and pump internals, enabling rapid heating with steam or hot oil to melt ambient-temperature solids and maintain fluid at operating viscosity. The positive displacement internal gear principle delivers a consistent, non-pulsating flow rate across a viscosity range of 28 to 2,000,000 SSU (1 to 440,000 cSt).
Features
- Integral jacket chambers on head and bracket for rapid heating via steam or hot oil
- Positive displacement internal gear design — constant flow rate across wide viscosity range
- Rotatable bearing housing for easy rotor end clearance adjustment for viscosity or wear compensation
- Axial rotor thrust controlled by double-row ball bearing or tapered roller bearings; bushing provides secondary radial shaft support
- Footed cast iron bracket for rigid mounting, extending seal and bearing life
- Pressure relief valve standard (plain head / less-valve option available)
- Rotatable casing for flexible porting arrangement
- Three-year limited warranty (Viking Universal Product Line)
Performance
- Capacity: Up to 500 GPM (114 m³/h)
- Viscosity: 28 to 2,000,000 SSU (1 to 440,000 cSt)
- Max Pressure: 200 PSI (14 bar)
- Temperature Range: −60 to +450 °F (−51 to +230 °C)
Options
- Porting: Right angle 90° rotatable casing (H-Q & M models); Opposite 180° (QS model); NPT/BSP; Flanged ASME/ANSI
- Drives: R — Offset gear reducer; P — Purchased gear reducer; D — Direct-mounted (H-HL); V — V-belt drive
- Mounting: Foot mount
- Sealing: Component mechanical seal; Cartridge mechanical seal; Cartridge triple lip seal
Applications
- Heavy fuel oil and residual fuel transfer
- Asphalt, bitumen, and coal tar handling
- Waxes, paraffin, and solidifying materials
- Rubber and polymer solutions
- Soap solutions and fatty acids
- Any non-corrosive viscous fluid requiring temperature maintenance
