Description

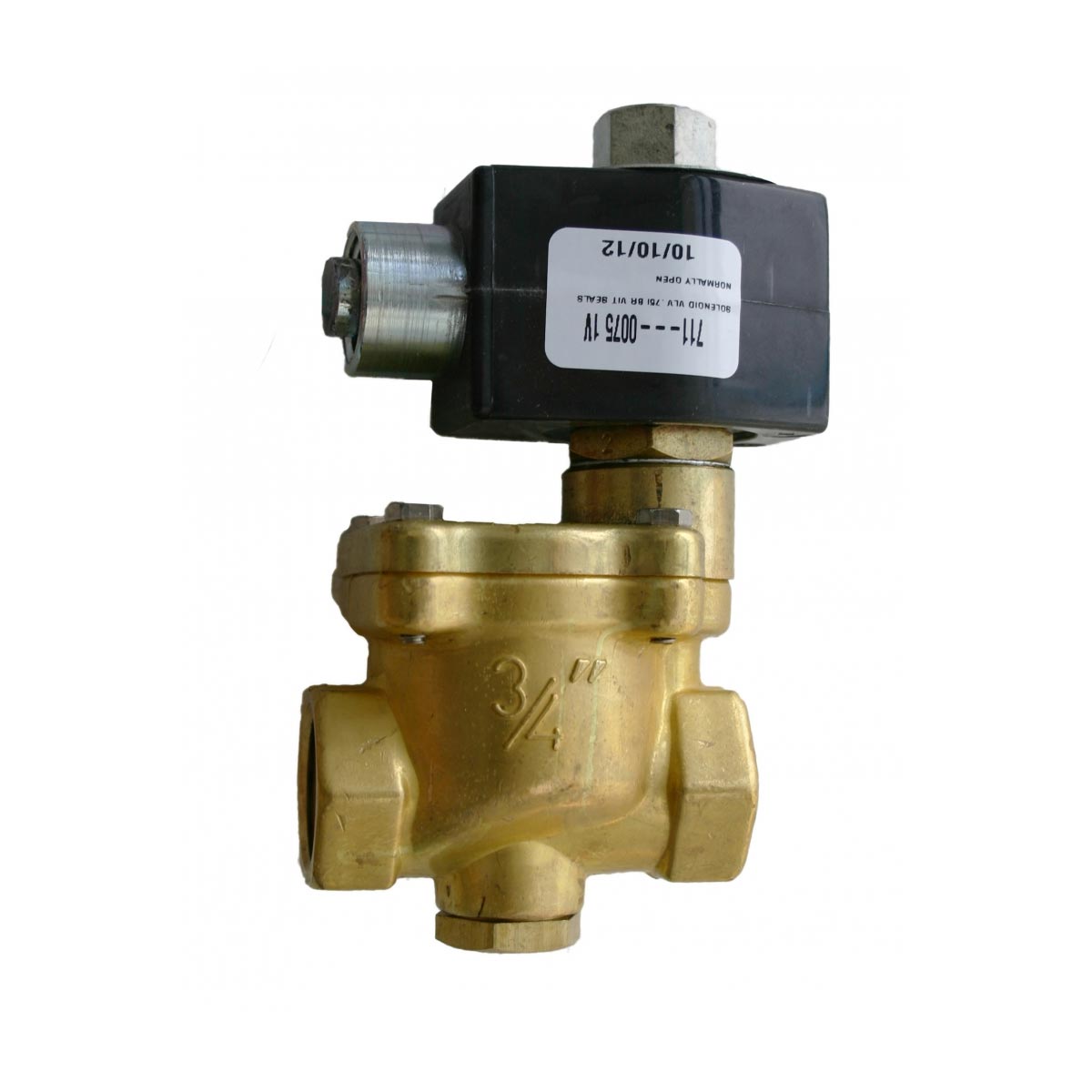

The FIG 711 is a high-flow pilot-operated normally open piston solenoid valve for general-purpose industrial applications. Unlike normally closed anti-siphon valves, the 711 remains open in its default state and closes upon receipt of an electronic signal. A minimum 7.5 PSI pressure differential is required to keep the valve open. Must be installed in a horizontal pipeline with the coil in the upright vertical position.
Features
- Normally open, high-flow pilot-operated piston valve
- 7.5 PSI pressure differential required to keep the valve open
- Closes upon receipt of an electronic signal
- Explosion-proof and weatherproof coil and housing
- Standard 120V/60Hz coil; optional voltages available
- Recommended for liquids with maximum viscosity of 60 centistokes
- 100 mesh strainer recommended at valve inlet
- Forged brass body and cover; FKM seals
- Must be installed horizontally with coil in upright vertical position
Applications
- Pressure systems and machine tools
- Water processing applications
- Steam applications
- General-purpose industrial valve installations
Certifications & Approvals
- cULus Listed
