Description

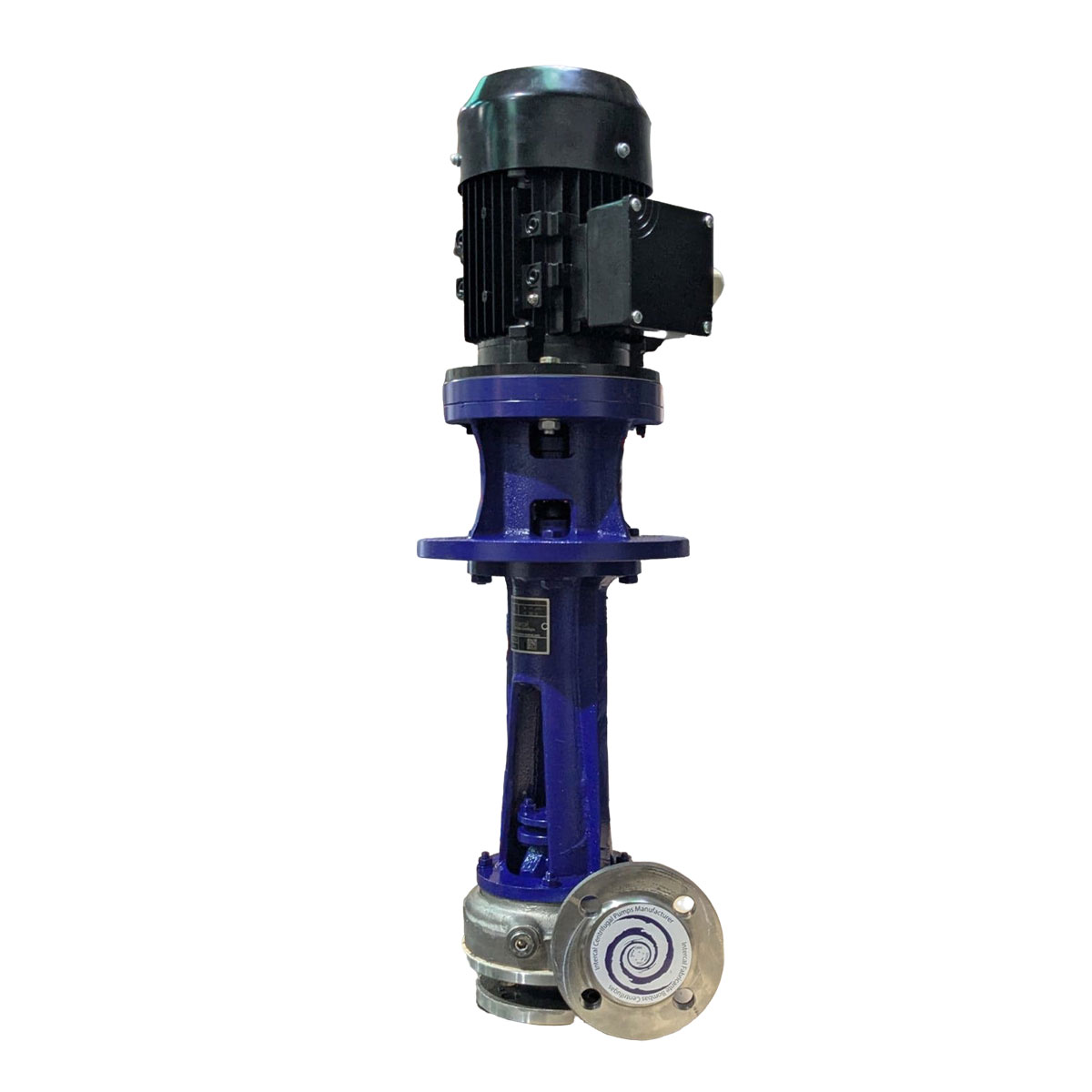

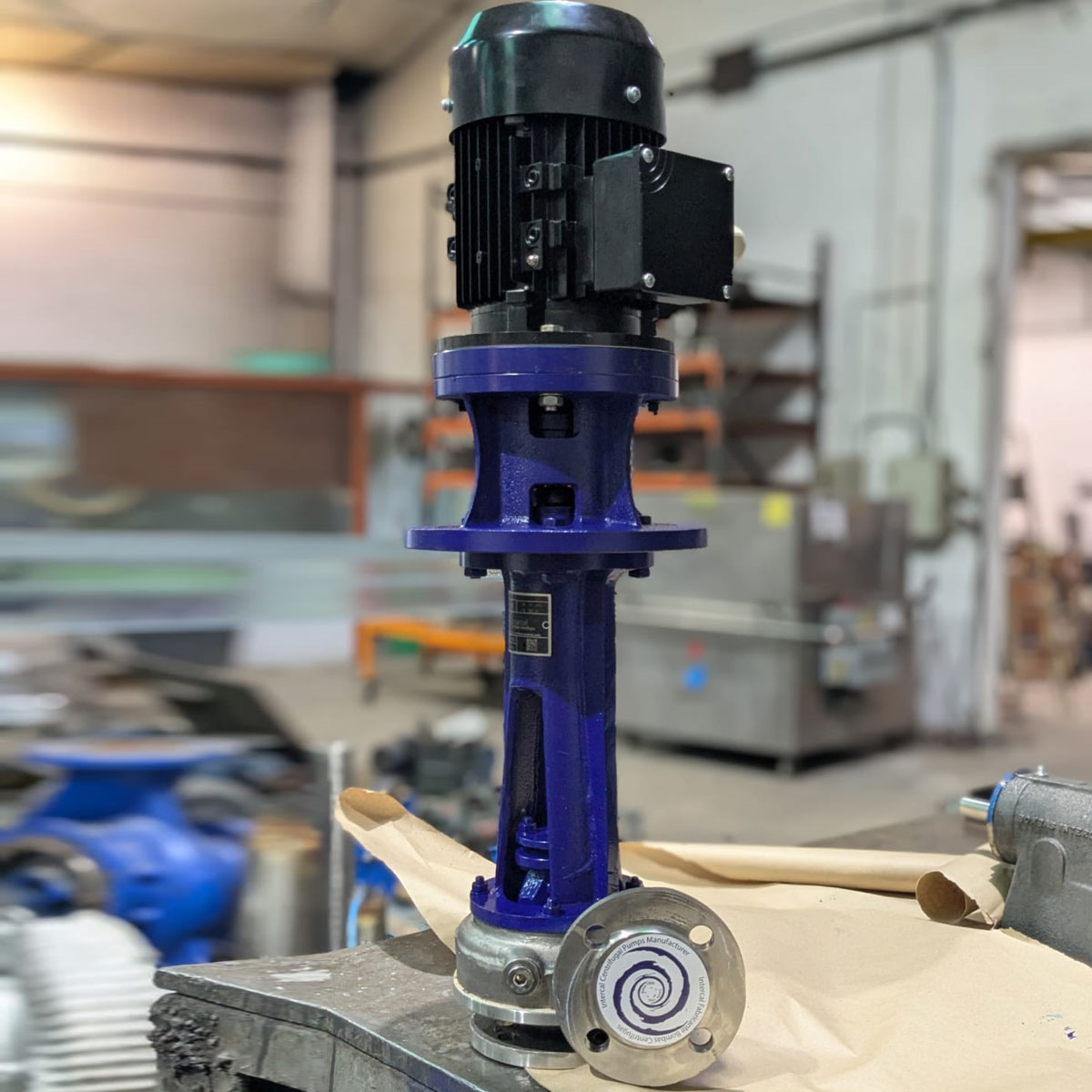

Intercal VEL Series extends the Intercal vertical pump range with a long shaft design suited to deeper sumps, tanks, and pits. The rotating assembly is supported by a column with a rigid coupling-connected shaft line, running in plain bearings lubricated by the pumped liquid or from an external source. An open impeller handles liquids with high solids content, fibrous materials, or elevated viscosity that would otherwise block or damage a closed impeller design.
Features
- Vertical long shaft construction — hydraulic submerged, motor at surface
- Open impeller (PX and PS types) for viscous and solids-laden liquids
- Shaft column supported by rigid sleeve couplings and plain bearing bushings
- Plain bearing lubrication: by pumped liquid or independent external supply
- Single-stage, axial suction / radial discharge
- Single bearing frame (unicelular)
- Stainless steel construction available
- Inspection and cleaning access cover on pump body
Applications
- Wastewater and effluent pumping
- Slurries and liquids with suspended solids
- Paper pulp and fibrous material transfer
- Agricultural waste — liquid manure and olive/grape pomace
- Well and pit cleaning with sand-laden water
- Marble cutting and mineral slurry
- Viscous liquids — paints, tars, oils, sludge, and lime slurries
