Description

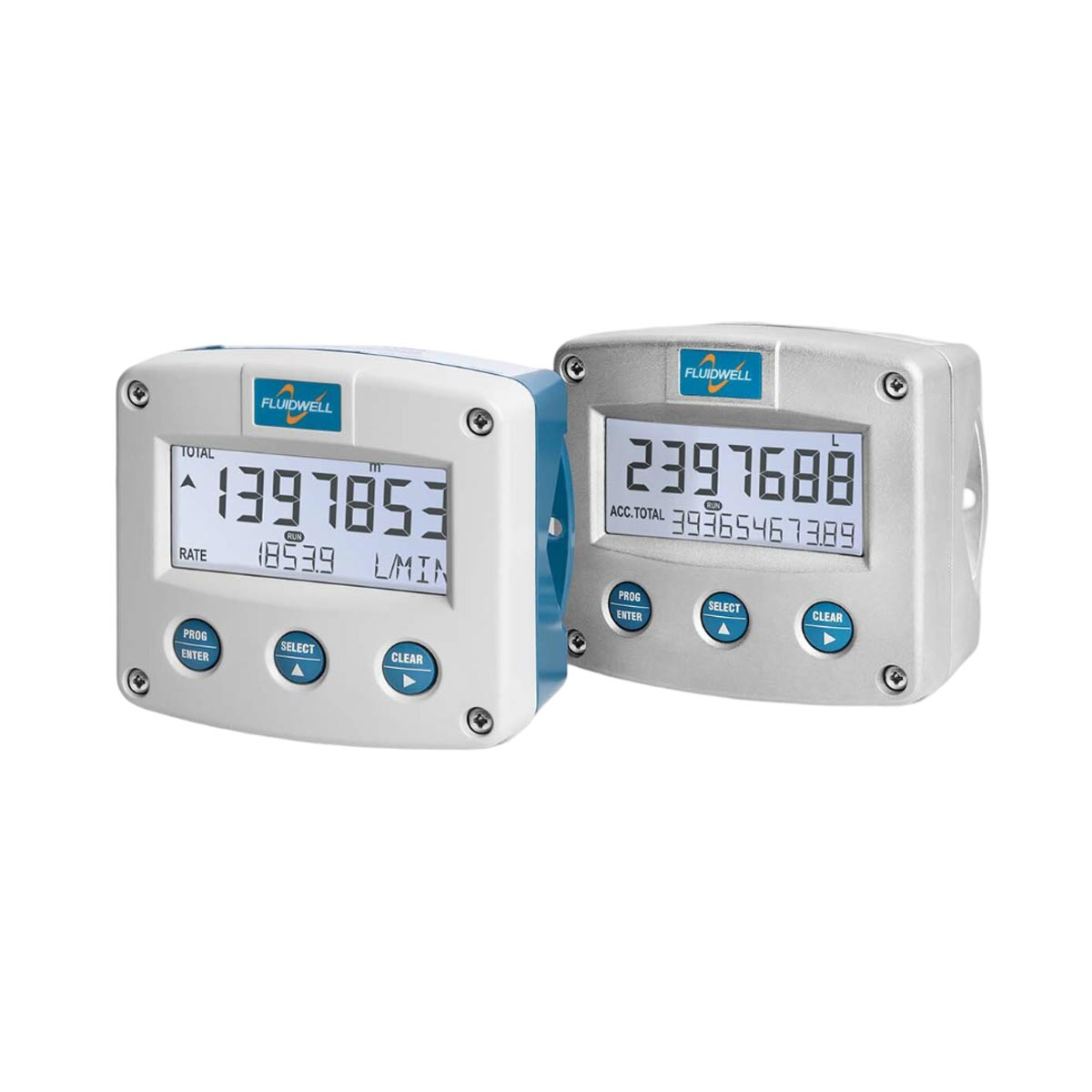

The F016 is a local flow rate indicator and totalizer featuring eight-point linearization, enabling precise flow calculation across the full measurement range. It interpolates between points to enhance accuracy, even for very low frequency applications. Linearization affects all displayed values and the scaled pulse output for remote system retransmission.
Features
- Simultaneous display of flow rate, resettable running total, and non-resettable accumulated total
- Eight-point linearization of the flow curve with interpolation between points
- Suitable for very low frequency pulse applications
- Scaled pulse output reflecting accumulated total; configurable pulse scale (e.g. one pulse per 3.25 GAL)
- Selectable large digit mode: flow rate or total displayed at 17 mm (0.67″”) height
- Flow rate: 7 digits at 17 mm (0.67″”) or 8 mm (0.31″”)
- Running total: 7 digits at 17 mm (0.67″”); resettable via double CLEAR button press
- Accumulated total: 11 digits at 8 mm (0.31″”); non-resettable
- Separate on-screen engineering units for flow rate and total
- LED backlight with adjustable intensity
- Auto backup of settings and running totals in EEPROM memory
- Explosion-proof option available (ATEX/IECEx)
- Available in GRP, aluminium, or high-grade stainless steel enclosure
- Ambient temperature: −40 to +70 °C (−40 °F to +158 °F)
- Various accessories available
Applications
- Liquid flow measurement with mechanical flowmeters requiring precise calculation over the full measurement range
- Low frequency pulse applications demanding enhanced linearity
- Harsh outdoor environments: rain, snow, sand, salt atmosphere
- Oil and gas, chemical, and process plant field installations
- Safe and hazardous area installations
Certifications
- ATEX — Gas (IS): II 1 G Ex ia IIC T4 Ga
- ATEX — Dust (IS): II 1 D Ex ia IIIC T200 100 °C Da
- IECEx — Gas (IS): Ex ia IIC T4 Ga
- IECEx — Dust (IS): Ex ia IIIC T200 100 °C Da
- CSA C-US (IS): Class I/II/III Div 1 Grp A–G T4 · Class I Zone 0 AEx ia IIC T4 Ga
- ATEX/IECEx — Gas (Ex-proof): II 2 G Ex db IIB+H2 T5 Gb
- ATEX/IECEx — Dust (Ex-proof): II 2 D Ex tb IIIC T80 °C Db
