Description

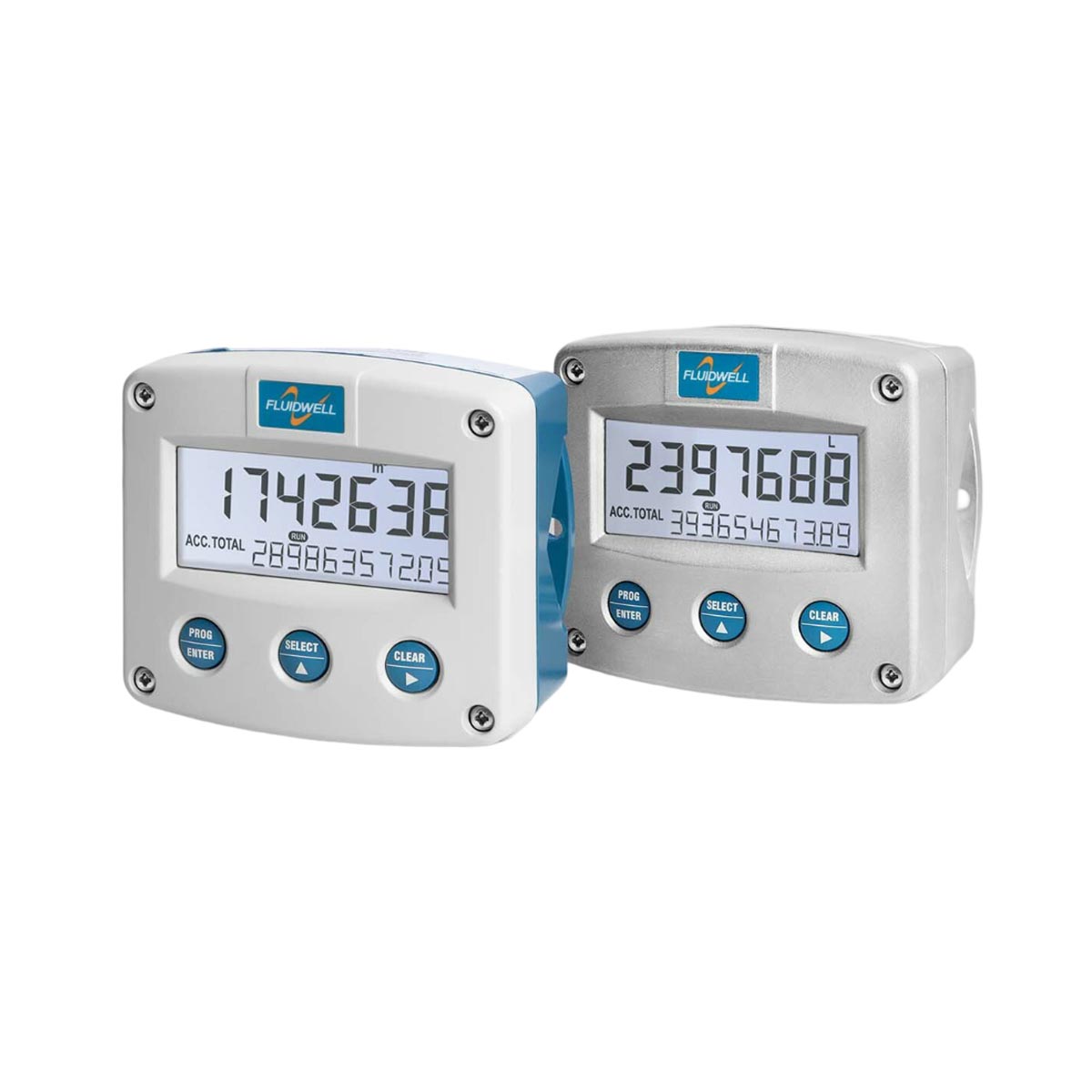

The F011 is a local totalizer designed for flow measurement applications requiring a totalizer function without flow rate indication or signal retransmission. It displays the running total and accumulated total simultaneously on a single screen, with the accumulated total backed up in EEPROM memory every minute. Measuring units are selected directly through an on-screen alphanumeric menu, eliminating the need for external labels.
Features
- Simultaneous display of resettable running total and non-resettable accumulated total
- Running total: 7 digits at 17 mm (0.67″”) height; resettable via double CLEAR button press
- Accumulated total: 11 digits at 8 mm (0.31″”) height; non-resettable
- On-screen selectable engineering units: mL, L, m³, GAL, USGAL, kg, lb, bbl, or none
- LED backlight with adjustable intensity
- Auto backup of settings and running totals in EEPROM memory (every minute)
- Available in GRP, aluminium, or high-grade stainless steel enclosure
- Ambient temperature: −40 to +70 °C (−40 °F to +158 °F)
- Various accessories available
Certifications
Intrinsically Safe (IS)
- ATEX — Gas: II 1 G Ex ia IIC T4 Ga
- ATEX — Dust: II 1 D Ex ia IIIC T200 100 °C Da
- IECEx — Gas: Ex ia IIC T4 Ga
- IECEx — Dust: Ex ia IIIC T200 100 °C Da
- CSA C-US: Class I/II/III Div 1 Grp A–G T4; Class I Zone 0 AEx ia IIC T4 Ga
Explosion Proof (Ex-proof)
- ATEX/IECEx — Gas: II 2 G Ex db IIB+H2 T5 Gb
- ATEX/IECEx — Dust: II 2 D Ex tb IIIC T80 °C Db
Applications
- Local totalizing in safe and hazardous area installations
- Batch and custody transfer metering
- Harsh outdoor environments: rain, snow, sand, salt atmosphere
- Oil and gas, chemical, and process plant field installations
- Mobile and truck-mounted metering applications
