Description

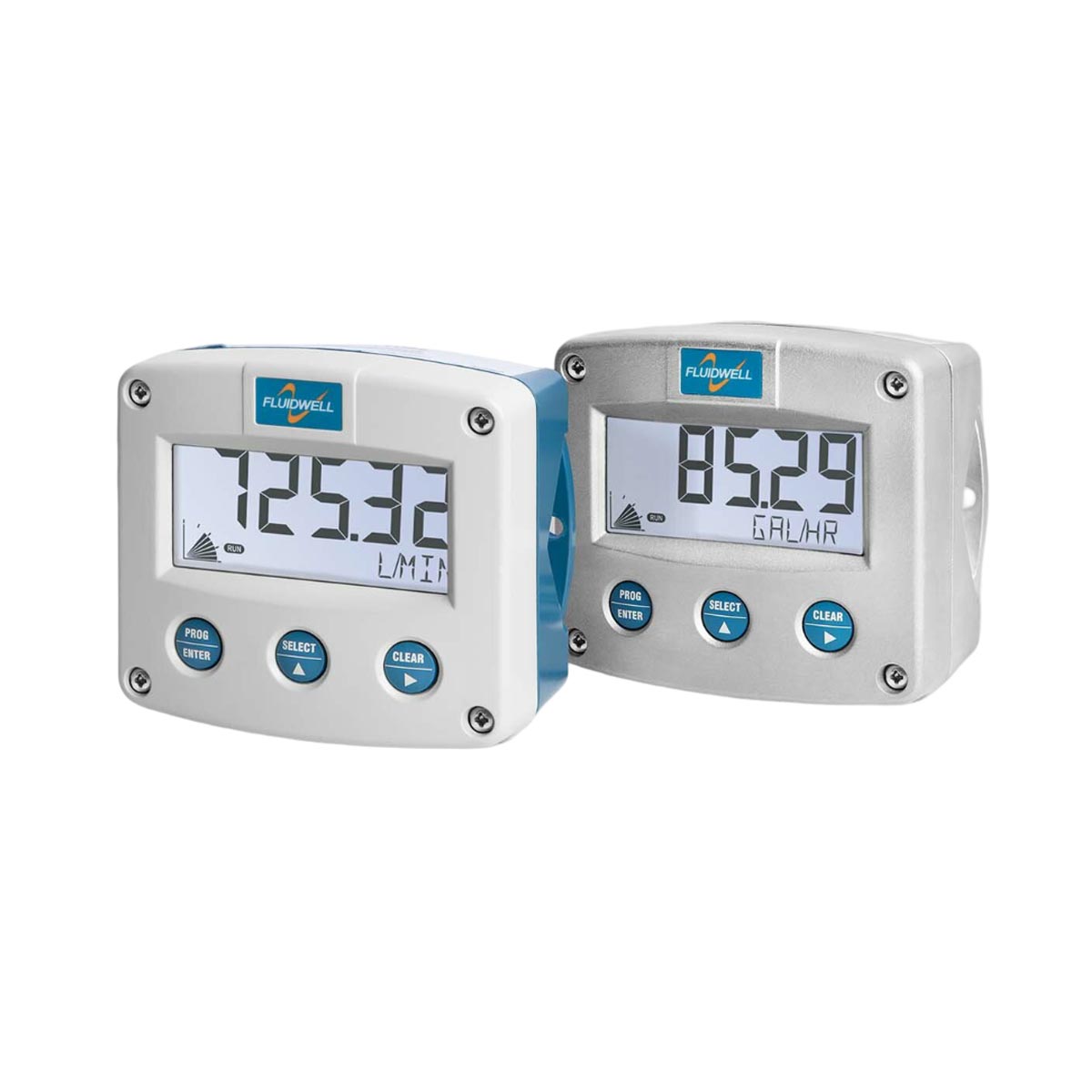

The F010 is a field-mount local flow rate indicator designed for applications requiring clear, reliable flow rate display without signal retransmission or totalizer functionality. Its 26 mm (1″”) high digits and alphanumeric on-screen unit selection make it easy to read and configure in the field. K-factors, span, and decimal settings are configured entirely through software — no DIP-switches or trimmers required.
Features
- Very large 26 mm (1″”) high digits for clear flow rate readout
- On-screen selectable engineering units — no adhesive labels required
- Piegraph indication with ten segments
- LED backlight with adjustable intensity
- Auto backup of all settings in EEPROM memory
- Easy alphanumeric configuration menu
- Available in GRP, aluminium, or high-grade stainless steel enclosure
- Ambient temperature: −40 to +70 °C (−40 °F to +158 °F)
- Various accessories available
Certifications
Intrinsically Safe (IS)
- ATEX — Gas: II 1 G Ex ia IIC T4 Ga
- ATEX — Dust: II 1 D Ex ia IIIC T200 100 °C Da
- IECEx — Gas: Ex ia IIC T4 Ga
- IECEx — Dust: Ex ia IIIC T200 100 °C Da
- CSA C-US: Class I/II/III Div 1 Grp A–G T4; Class I Zone 0 AEx ia IIC T4 Ga
Explosion Proof (Ex-proof)
- ATEX/IECEx — Gas: II 2 G Ex db IIB+H2 T5 Gb
- ATEX/IECEx — Dust: II 2 D Ex tb IIIC T80 °C Db
Applications
- Local flow rate indication in safe and hazardous areas
- Harsh outdoor environments: rain, snow, sand, salt atmosphere
- Oil and gas field installations
- Chemical and process plants
- Mobile and truck-mounted metering applications
