Description

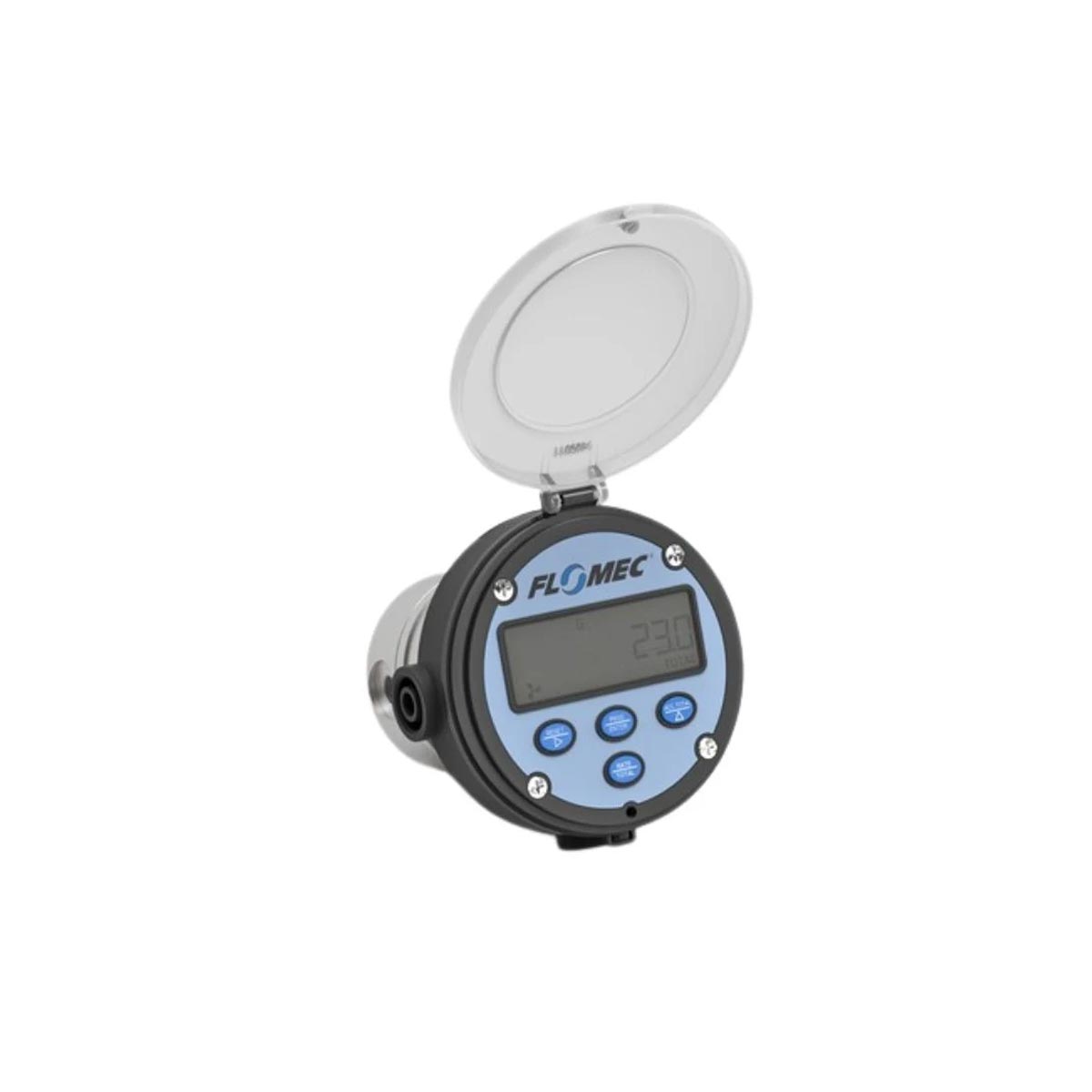

FLOMEC OM Small Capacity oval gear meters combine precision measurement with the RT14 totaliser, delivering high-accuracy local display and multi-output process integration. The RT14 provides scaled pulse and 4–20 mA outputs for seamless connection to external control systems. An intrinsically safe ATEX/IECEx approved version is also available for hazardous areas.
Features
- Oval gear positive displacement technology — accurate direct volumetric measurement
- Accuracy: ±0.2% of reading (with RT14 non-linearity correction)
- Repeatability: ±0.03% of reading
- Flow range: 1–550 L/hr across 1/8″” to 3/8″” pipe sizes
- RT14 flow rate totaliser with scaled pulse, 4–20 mA loop-powered output, and flow alarms
- PLC, SCADA, and DCS compatible via RT14 outputs
- Intrinsically safe version available — ATEX/IECEx approved
- No flow conditioning required — no straight pipe runs needed
- Only two moving parts — low maintenance and high reliability
- Factory calibrated
- Aluminum body with Viton® O-rings; stainless steel rotors (PPS rotors on 3/8″” size)
- Operating temperature range: −40 to +80 °C
Applications
- Fuel additive injection
- Fuel consumption measurement
- Diesel injector and pump test equipment
- Oil and grease lubricant monitoring
