Description

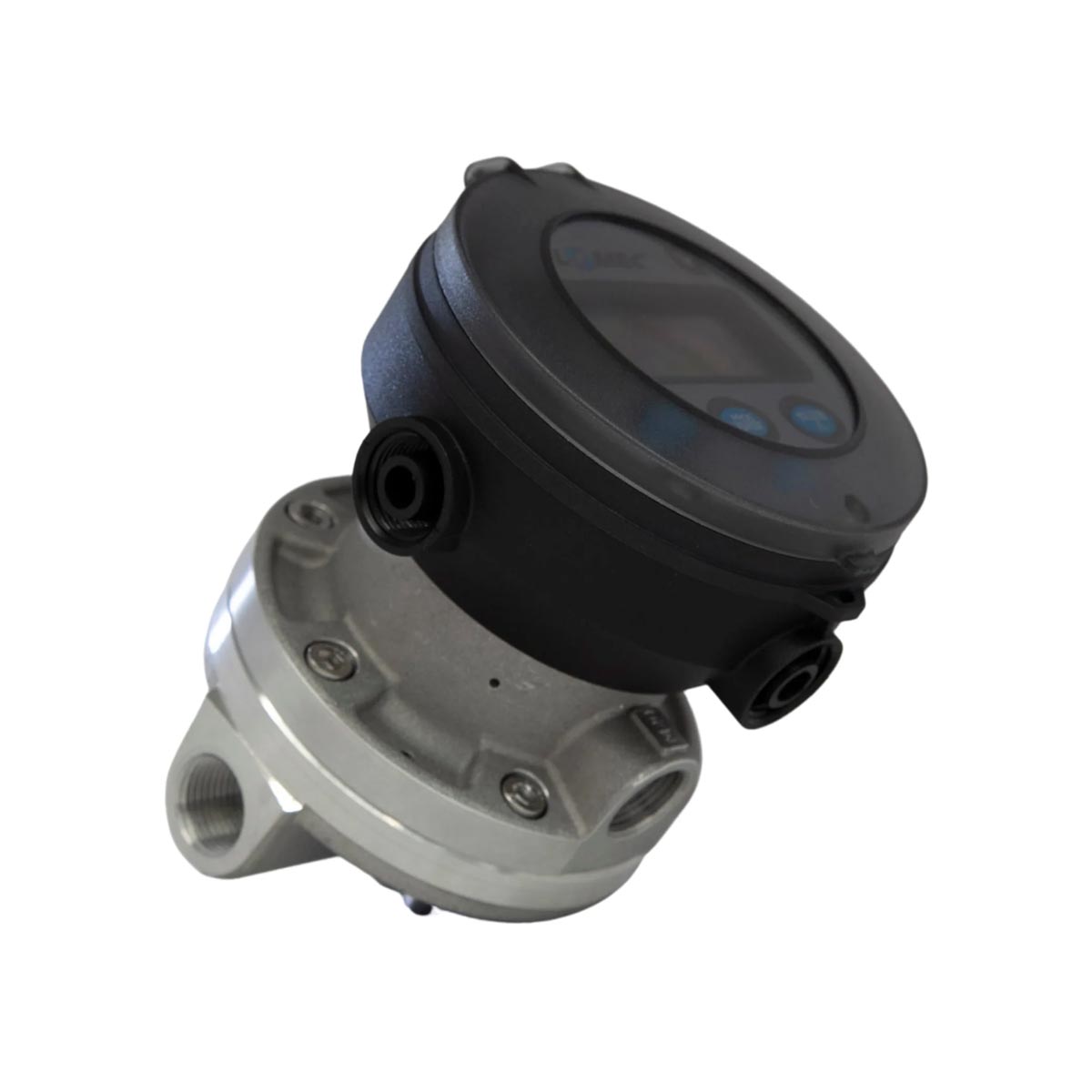

FLOMEC OM Series medium capacity oval gear meters combine precision measurement with the RT14 totaliser, delivering high-accuracy local display and multi-output process integration. The RT14 provides scaled pulse and 4–20 mA outputs for seamless connection to external control systems. An intrinsically safe ATEX/IECEx approved version is also available for hazardous areas.
Features
- Oval gear positive displacement technology — accurate direct volumetric measurement
- Accuracy: ±0.2% of reading
- Repeatability: ±0.03% of reading
- Flow range: 1–450 L/min across 1/2″” to 2″” pipe sizes (size dependent)
- RT14 flow rate totaliser with scaled pulse, 4–20 mA loop-powered output, and flow alarms
- PLC, SCADA, and DCS compatible via RT14 outputs
- Intrinsically safe version available — ATEX/IECEx approved
- Petrol and kerosene compatible with intrinsically safe RT14 version only
- Low-pressure drop design for pumped and gravity-fed applications
- No flow conditioning required — no straight pipe runs needed
- Only two moving parts — low maintenance and high reliability
- Factory calibrated
- Aluminum body with PPS rotors and Viton® O-rings
Applications
- Diesel fuel transfer
- Lubricating oils and greases
- Edible oils
- Petrol — intrinsically safe RT14 version only
- Kerosene — intrinsically safe RT14 version only
