Description

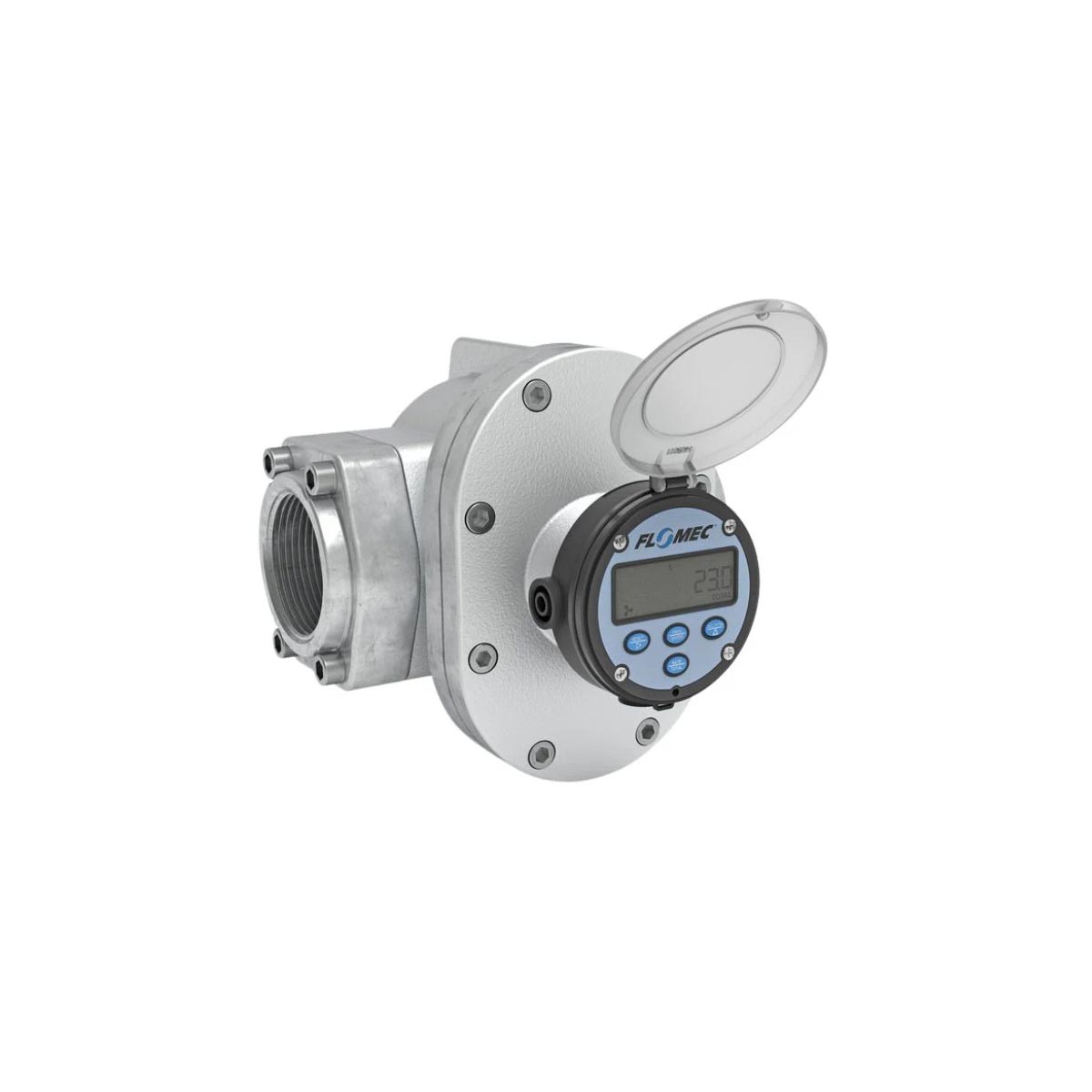

FLOMEC OM Series large capacity oval gear meters combine precision measurement with the RT14 totaliser, delivering high-accuracy local display and multi-output process integration. The RT14 provides scaled pulse and 4–20 mA outputs for seamless connection to external control systems. No flow conditioning is required for large-bore compact installations today.
Features
- Oval gear positive displacement technology — accurate direct volumetric measurement
- Accuracy: ±0.2% of reading
- Repeatability: ±0.03% of reading
- Flow range: 35–2,500 L/min across 3″” to 4″” pipe sizes (size dependent)
- RT14 flow rate totaliser with scaled pulse, 4–20 mA loop-powered output, and flow alarms
- PLC, SCADA, and DCS compatible via RT14 outputs
- Low-pressure drop design for efficient high-flow liquid transfer
- No flow conditioning required — no straight pipe runs needed
- Only two moving parts — low maintenance and high reliability
- Factory calibrated
- Aluminum body with PPS rotors (aluminium rotors on OM100E) and Viton® O-rings
- Operating temperature range: −40 to +80 °C
Applications
- Bulk transfer of diesel fuel
- Lubricating oils and greases
- Edible oils
