Description

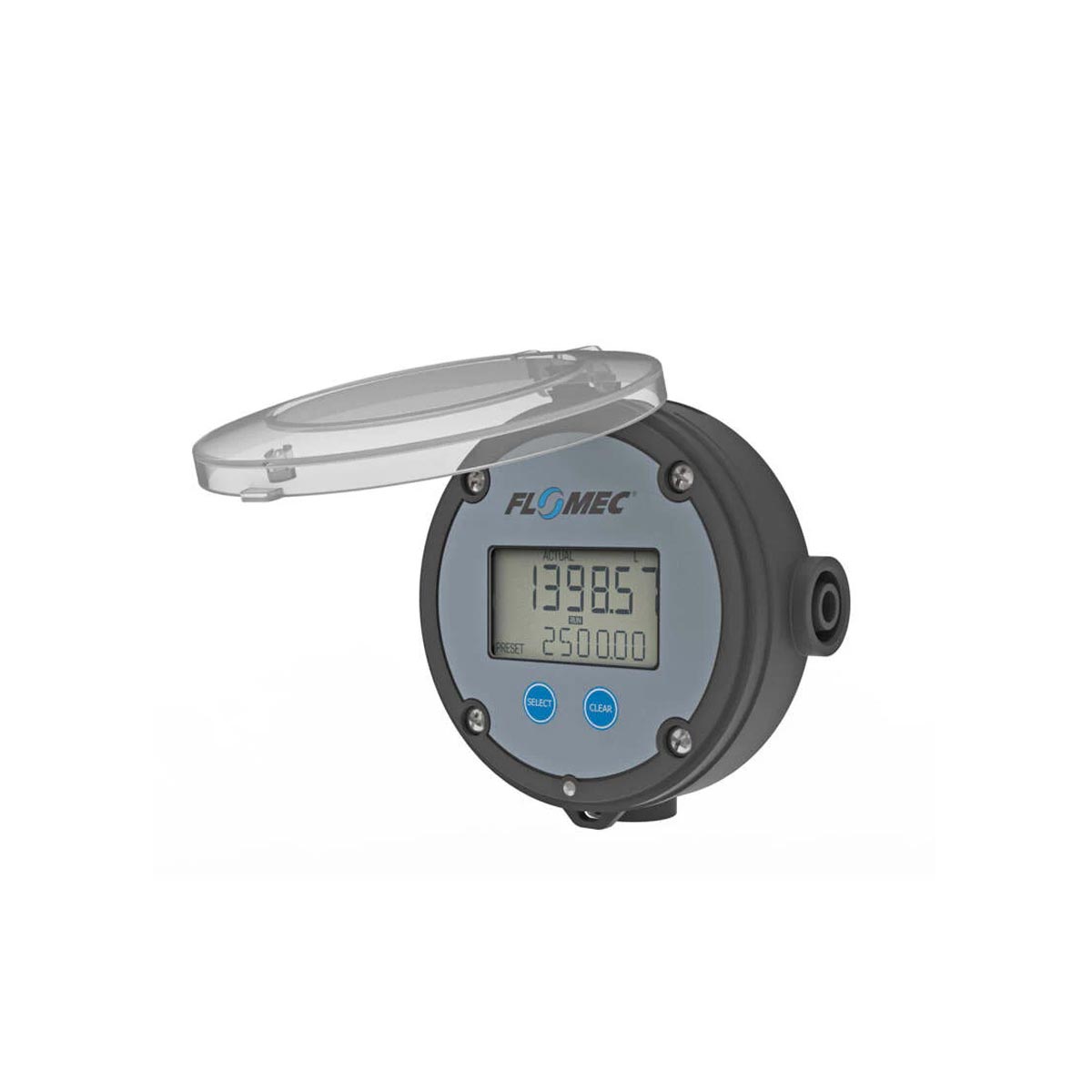

FLOMEC® EB11 “”EasyBatch”” is a dual-stage controller managing volume through two independent outputs. Stage one slows flow ahead of target; stage two closes the valve at setpoint — minimizing overrun for repeatable, accurate batches. Its simple 2-button interface, backlit display, and nonvolatile memory ensure straightforward commissioning and operation across industries.
Features
- Dual-stage control: two NPN open-collector outputs, up to 300 mA each — for direct solenoid valve control or relay-driven large valves and pumps
- Simple 2-button operation for intuitive batch programming and control
- Large backlit 7-digit LCD display (12 mm batch total, 7 mm batch preset) for clear reading in any lighting condition
- Compatible with Namur, reed switch, NPN, PNP, and coil pulse input signals
- Meter or stem mount; also wall, surface, pipe, and panel mountable
- IP66/67 / NEMA4X glass-reinforced nylon enclosure — impact and corrosion resistant for washdown environments
- Nonvolatile memory retains all settings after power loss
- Compatible with FLOMEC oval gear, turbine, and insertion meters
Applications
- Bottling and liquid packaging lines
- Concentrate dilution and blending
- Food and beverage ingredient addition
- Chemical dosing and mixing
- Industrial fluid dispensing
