Description

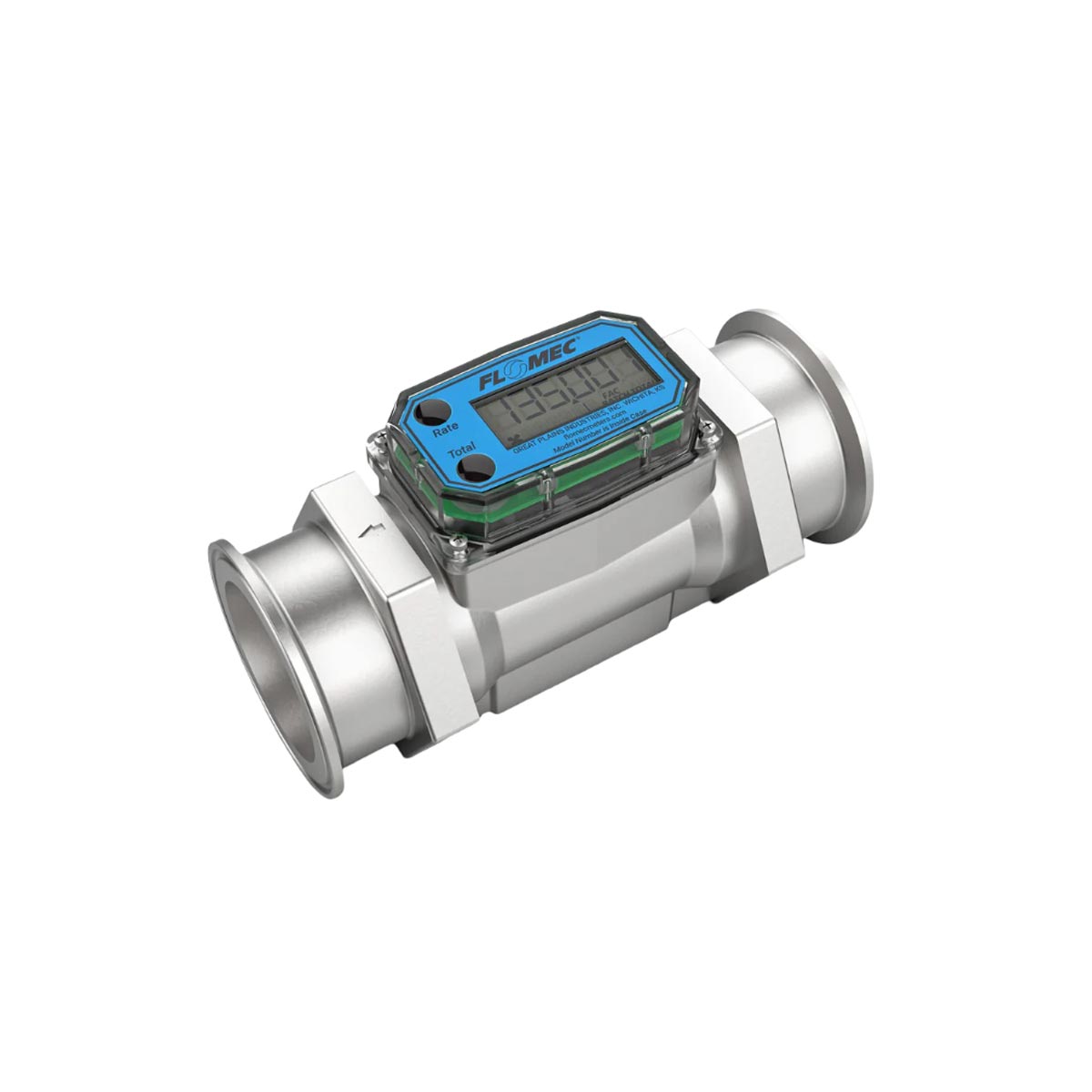

The FLOMEC G2 Series Brewery Meter is a sanitary turbine flow meter engineered for the brewing and food and beverage industry. Its modular, lightweight design allows it to be moved between process points — from strike water and sparge water to wort transfer and final batch volume measurement. Factory-calibrated and field-adjustable, it delivers consistent accuracy across all grain brewing stages.
Features
- 316 stainless steel wetted construction for food-grade compliance
- Sanitary Tri-Clover® tri-clamp end fittings (clamp size is 1/2″” larger than meter size)
- Modular design compatible with output modules, sensors, and remote transmitters
- 2 totals: resettable batch total and non-resettable cumulative total; plus rate of flow display
- Factory calibrated in gallons or litres; field calibratable
- Nonvolatile memory retains totals on power loss
- Designed for thin fluids under 100 cP
- Hot water measurement up to 85 °C with optional Hi-Temp Riser kit
- AAA alkaline battery life up to 2 years
- Simple internal parts replacement for easy maintenance
Applications
- Strike water and sparge water measurement
- Wort transfer to fermenter and final batch volume
- Hot water flow metering
- Brewing process batching and blending
- Food and beverage processing
- Plant process water
